[CIVIL NX] How to get concurrent reactions due to moving load?

Question

How to get concurrent reactions due to moving load?

Answer

To get concurrent reactions at support node (i.e. maximum or minimum force at one node and corresponding forces at the other
nodes), concurrent reaction groups has to be defined.

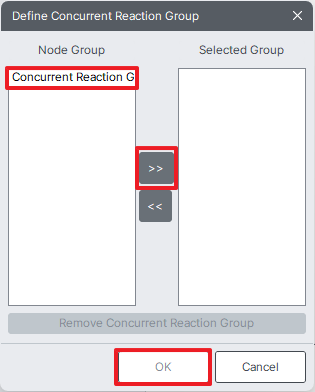

After definition of live loads, define the concurrent reaction group using the work flow as
shown.

From Main Menu select Load > Moving Load > Moving Load Code > Concurrent Reaction Group

For Viewing Concurrent reactions after analysis, go to
Results > Result Tables > Concurrent (Max/Min Reactions)
