[CIVIL NX] Imported values of P-M in Civil NX from GSD does not match with P-M interaction curve of GSD

Question

What is the P-M table imported to Civil NX from GSD?

Answer

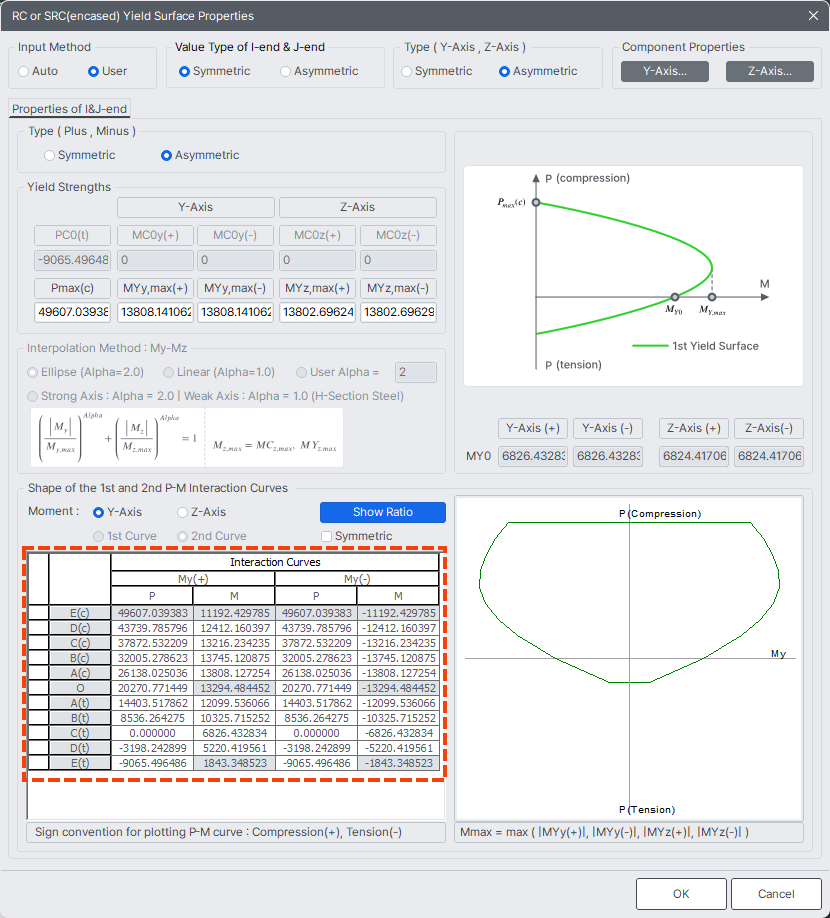

Let us understand the P-M interaction curve provided in the Hinge property when imported using GSD.

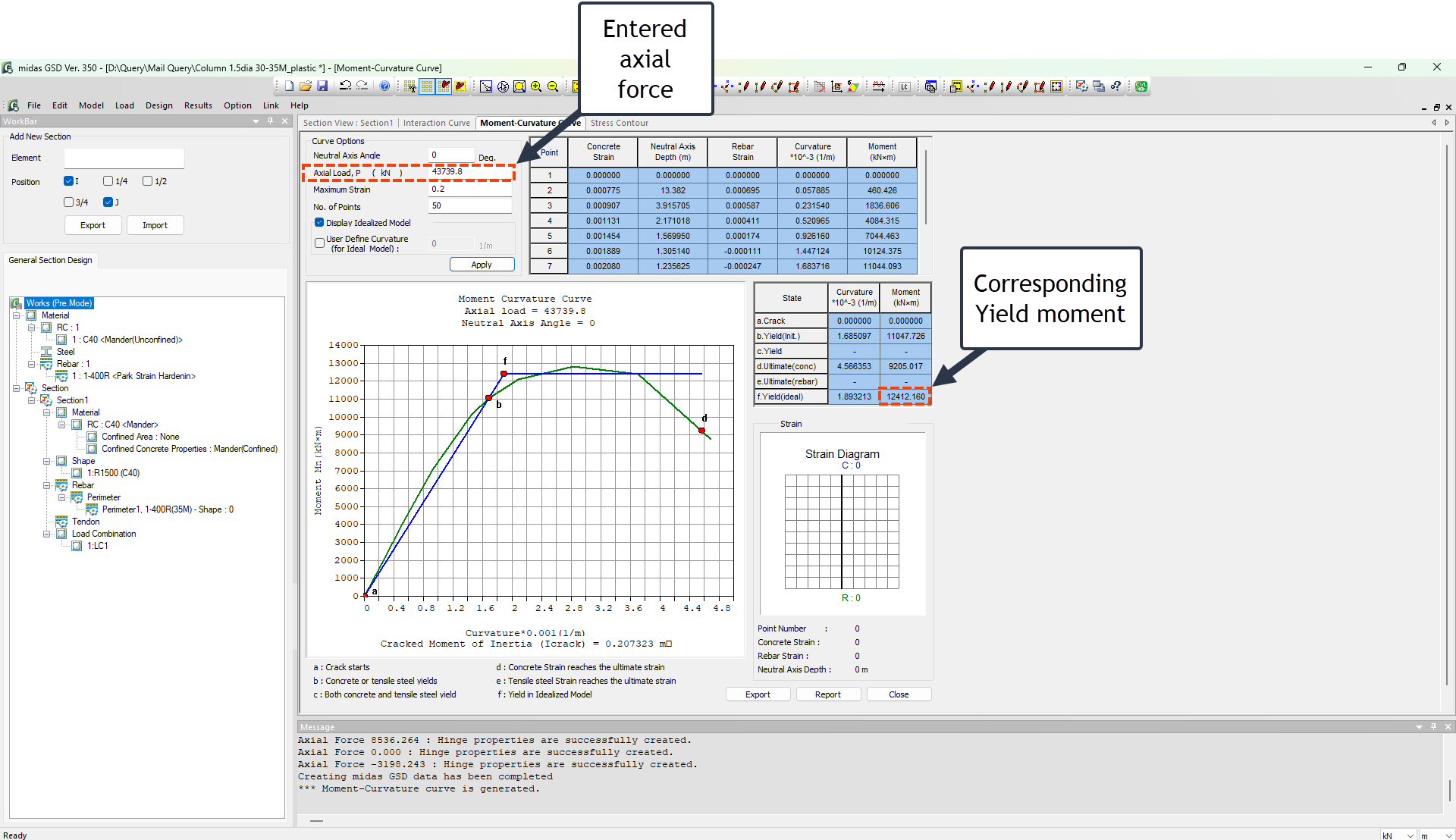

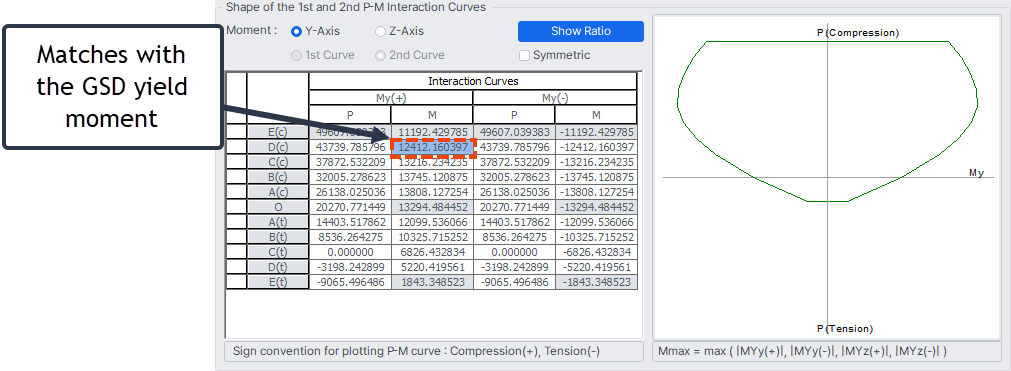

Please note that the P-M table in the Hinge property is not the P-M interaction curve of GSD. Instead, it represents the yield moment for each axial force case. This can be verified by entering the axial force in the highlighted box shown below
