[CIVIL NX] Activation of Tree Menu 2

Question

How to activate "Tree Menu 2" option in CIVIL NX?

Answer

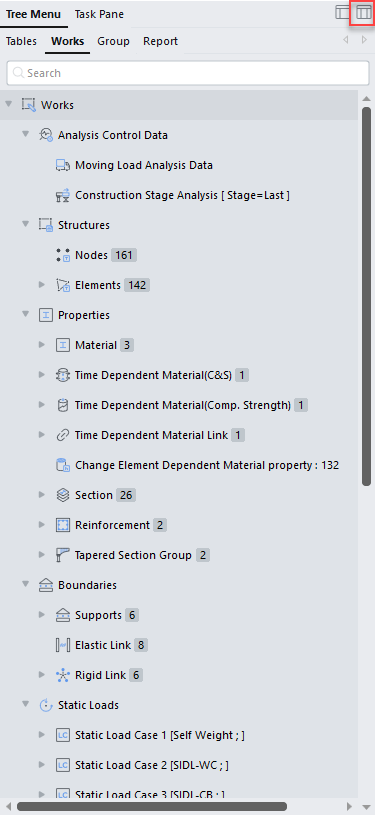

To activate the "Tree Menu 2" option, click the icon located at the top right corner of "Tree Menu 1", as shown in the snapshot below.

Tree Menu 2.png
