[CIVIL NX] How to view results of a particular load case separately in construction stages?

Question

How to view results of a particular load case separately in construction stages?



Answer

For all the loads applied in construction stages, the results are clubbed under a single loads case i.e. “Dead load” except for the pre-stressing loads which are displayed under heads “Tendon Primary and Tendon Secondary”

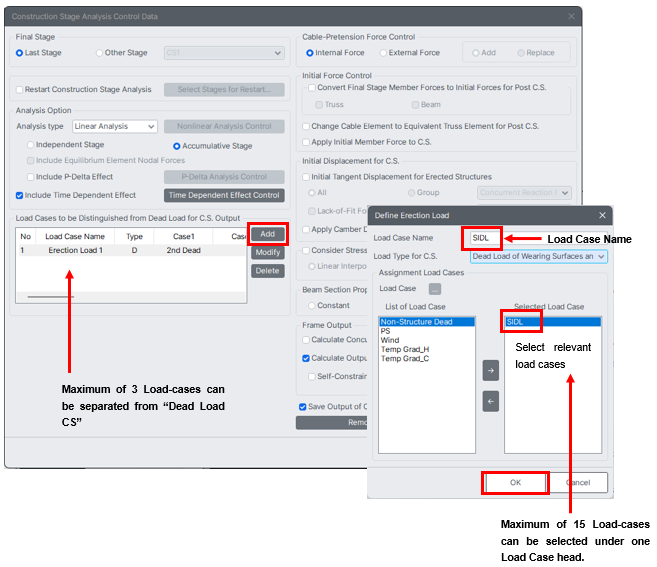

If a particular load case results needs to be separated from “dead load case”, then it needs to be segregated as shown below.

Go to Analysis > Construction Stage
