[CIVIL NX] Warnings displayed during analysis that certain load cases have not converged. How to converge all the load cases?

Question

Warnings displayed during analysis that certain load cases have not converged. How to converge all the load cases?

Answer

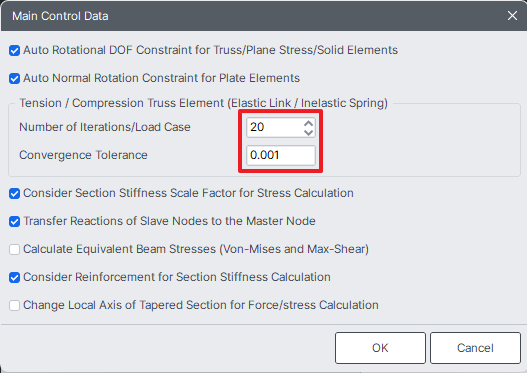

These type of warnings during analysis, can be avoided by altering the default convergence criteria from Main Control Data as shown
below.

From Main Menu select Analysis > Main Control Data

The number of iterations for load case convergence can be increased or
convergence tolerance can be altered if load cases do not converge.
