[CIVIL NX] How to formulate load combinations for construction stage results?

Question

How to formulate load combinations for construction stage results?

Answer

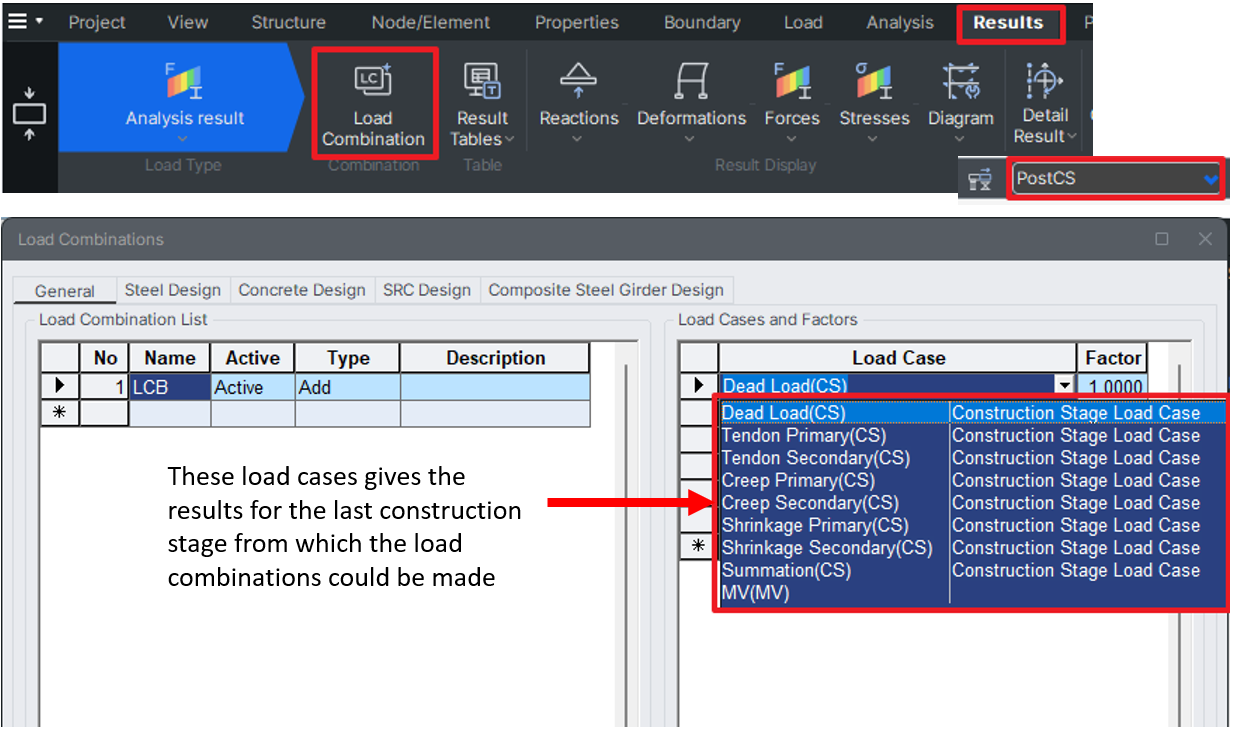

By default, the results of last construction stage will be available in
Load combinations in post-construction mode after completion of analysis.

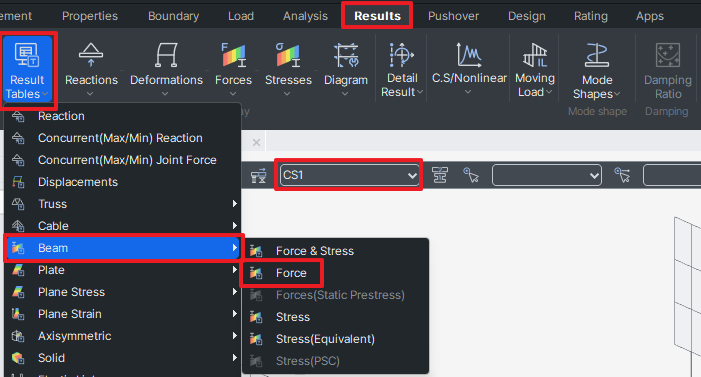

If one wants to extract results for construction stages other than last construction stage, then post-construction mode should be changed to that particular construction

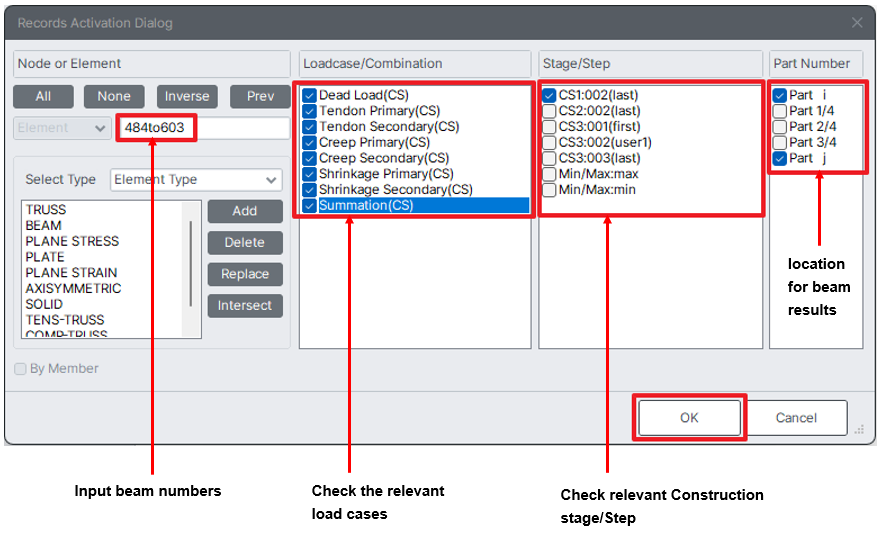

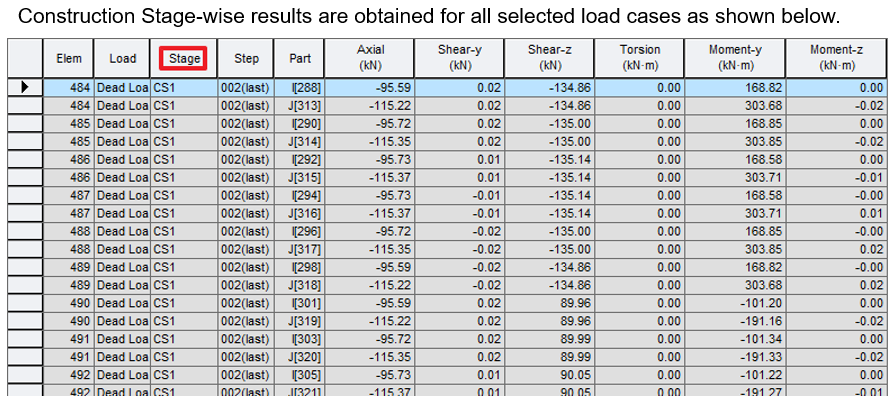

stage and then goto Results > Results Tables > Beam > Force…
