[CIVIL NX] How to obtain cross sectional stresses for line element?

Question

How to obtain cross sectional stresses for line element?

Answer

Stress Points have to be defined.

Go to Properties > Section Manager > ‘Stress Points…’

Stress points could be defined from,
Properties > Section Manager > Stress Points

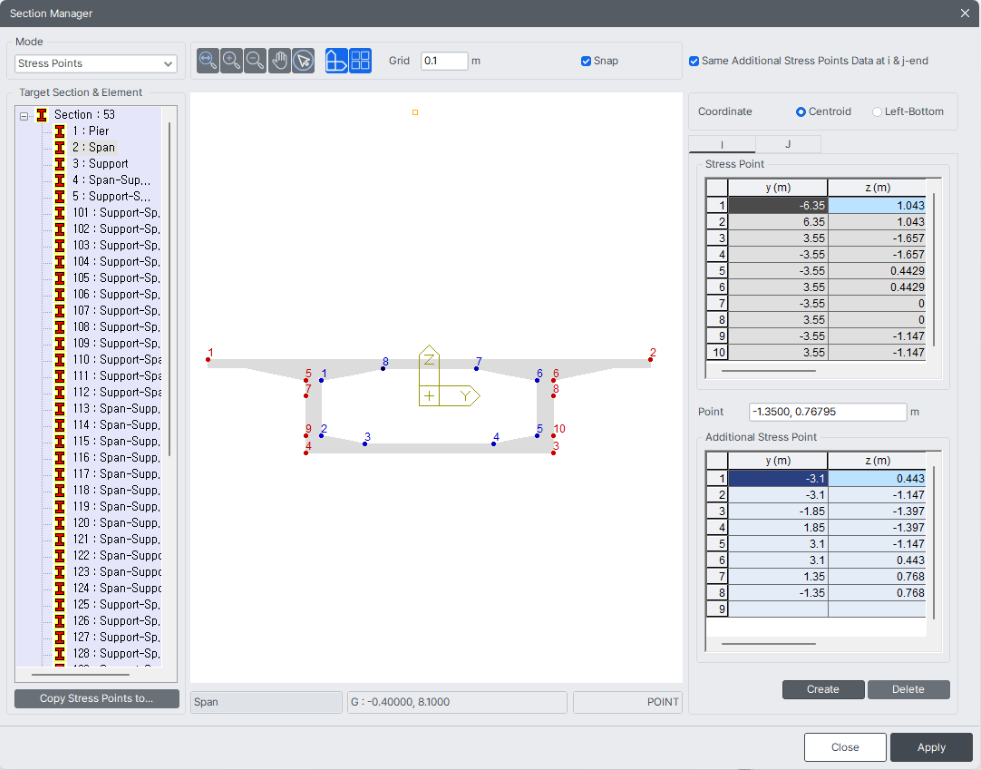

Such additional stress points are displayed in blue as in image below.

Stress points could be generated at any position for the sections of types DB, PSC / PSC Value, Tapered Section, Composite Section, General and Composite General Section. In
case of Composite Section, Stress Points can be defined only for Part2.

The results for these additional stress points could be checked using the beam detail analysis option., which could be exported to excel. The option can be accessed from path
Results > Beam Element > ‘Beam Detail Analysis…’
