[CIVIL NX] How to change the unit system for generating the design report?

Question

How to change the unit system for generating the design report?



Answer

We can generate the design report of customised unit system as per our requirement.

To change the unit system, go to Project>Preferences>Design/Load Code

Select the type of design - Steel/Concrete/Composite/Steel Orthotropic Deck

Select the Design Code - AASHTO -LRFD20(US)

Select the Report Unit - US/SI

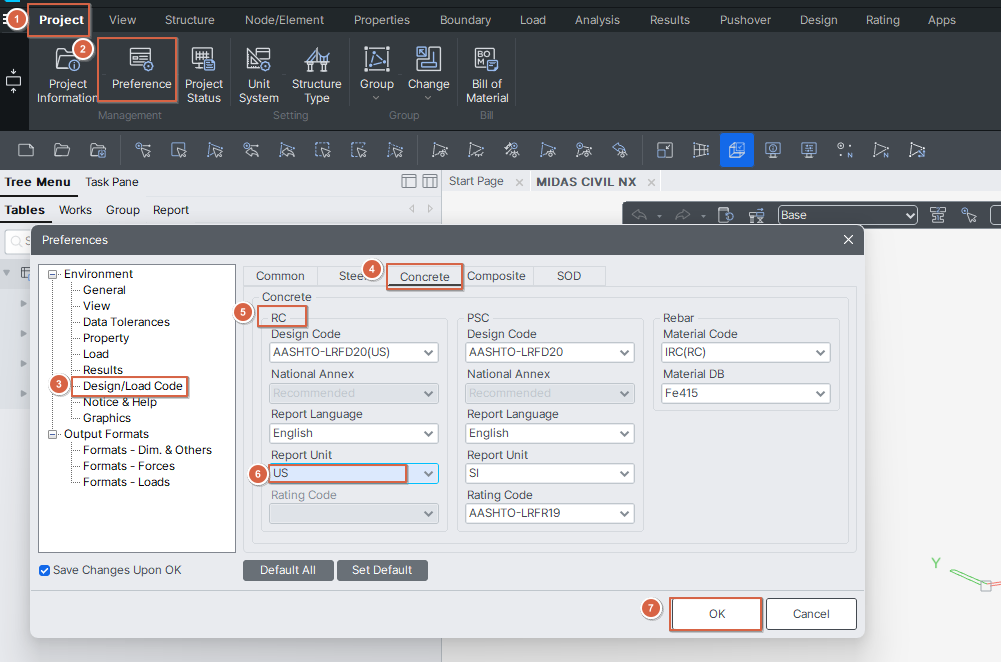

The steps are highlighted in the image below
