Question
The 'Properties' panel and 'Draw Lib.' panel are not visible in CAD ID. How can they be displayed?
Answer
There are 4 methods available by which we can access both of these Panels.
Method-1: Using command line
1. Display the Properties panel

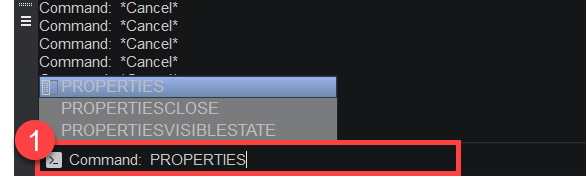

Step-1: In the command line, type "PROPERTIES" and press the enter key to display the Properties menu panel in CAD ID,
2. Display the Draw Library panel

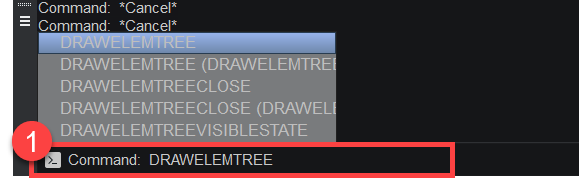

Step-1: In the command line, type "DRAWELEMTREE" command and press the enter key to display the Draw Library menu panel.
Method-2: From "Tool" Ribbon menu
Step-1: Go to Tool ribbon menu

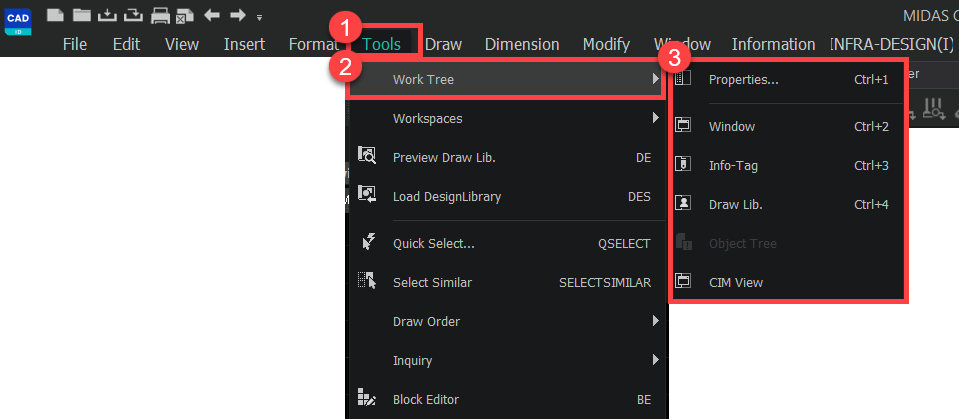

Step-2: Click on Work-tree menu
Step-3: From the sub-options of Work-tree menu, choose the menu panel you want to display/undisplay
Method-3: Using Quick shortcut's menu

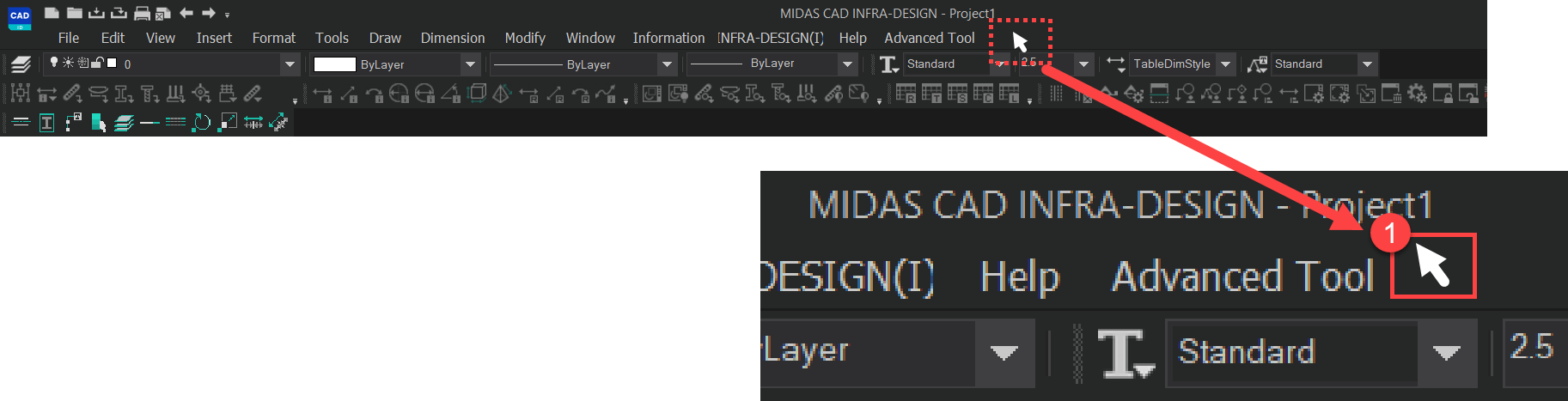

Step-1: Hover the mouse beside the "Advanced Tool" ribbon and press mouse right click button
(A Quick shortcut's menu shall appear)

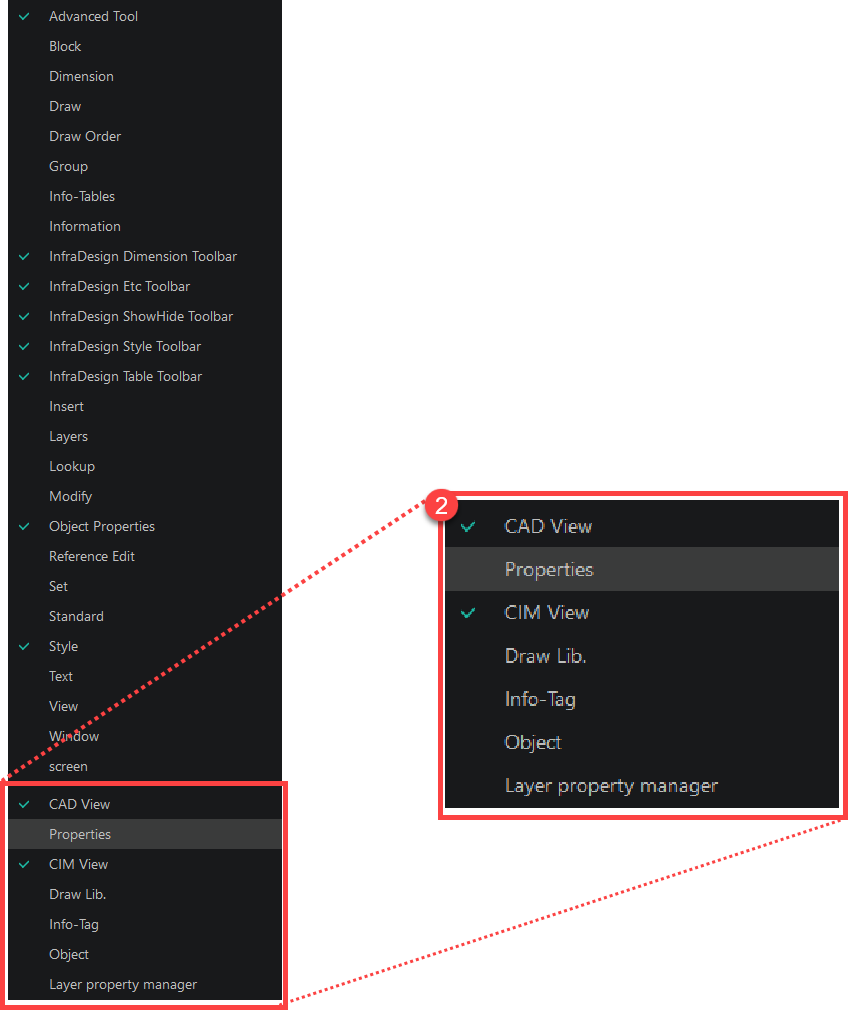

At the bottom of this menu, you will find all the required Panels of CAD ID.
Step-2: Using mouse left click, display/undisplay the required panel.
Method-4: Using short-cut keys
- To display/undisplay the properties panel: Press "Ctrl+1" on keyboard
- To display/undisplay the Draw Library panel: Press "Ctrl+4" on keyboard

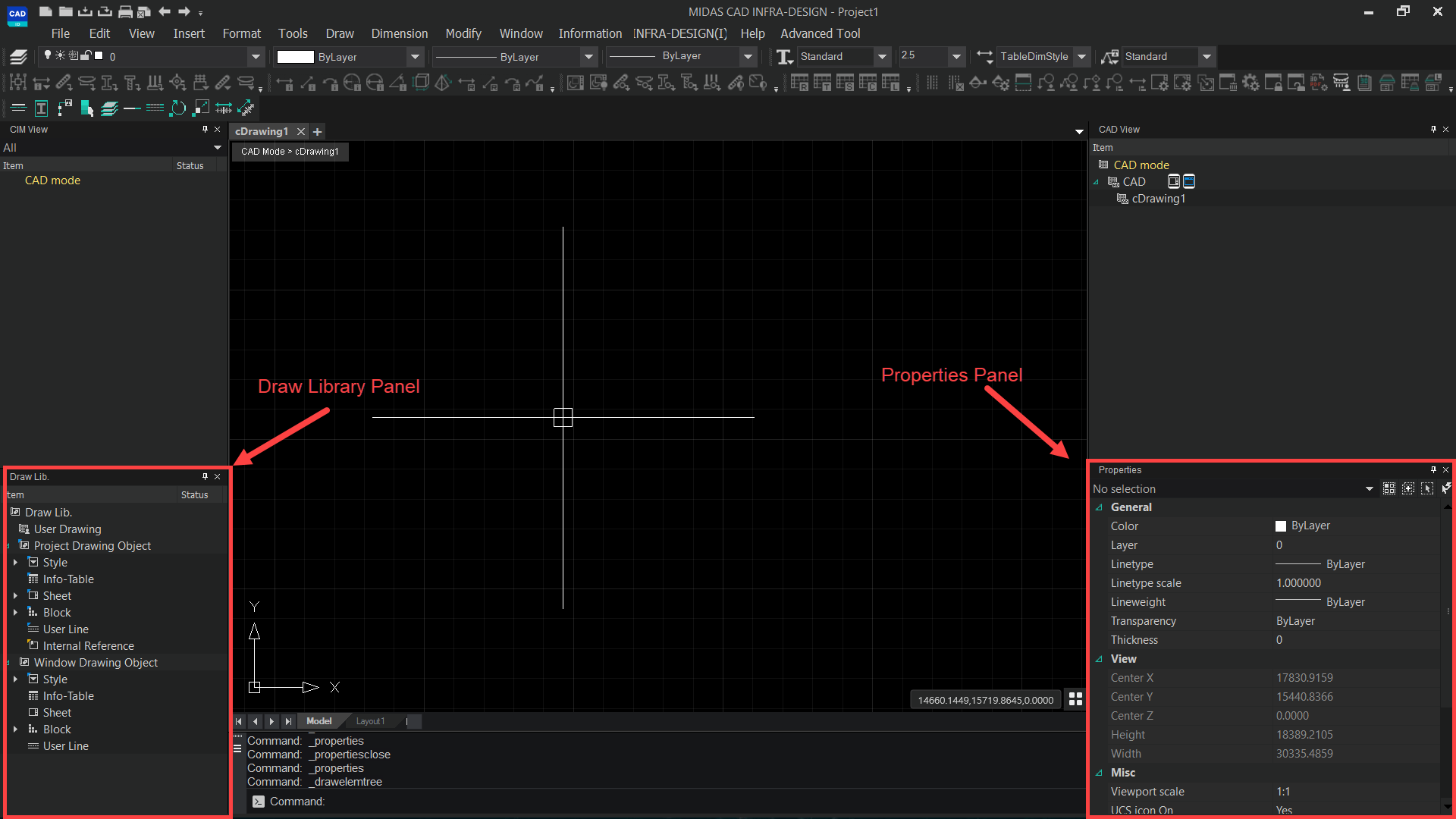

A final image, after these panels being displayed in CAD ID, is shown below:
By using any of these method we can display or undisplay the Properties panel and the Draw Library panel in CAD ID.
