Question
How to apply Base Shear Correction Factor in Midas Gen as per IS 1893-2016?
Answer
To apply the Base Shear Correction Factor in Midas Gen according to IS 1893-2016, there are two methods you can use:

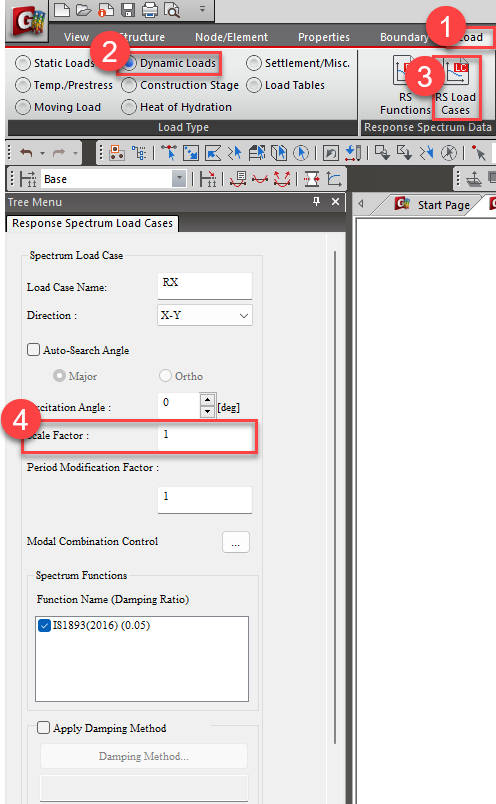

1. By Scaling Load Cases:
Once the scale factor is determined, you can apply it directly to the load cases where those load cases are defined in your model.
- Click on Load
- Search for Load Type and active Dynamic Loads
- Go to Response Spectrum Data and Click on RS Load Cases
- Under the tree menu, choose an appropriate Scale Factor for your spectrum load case

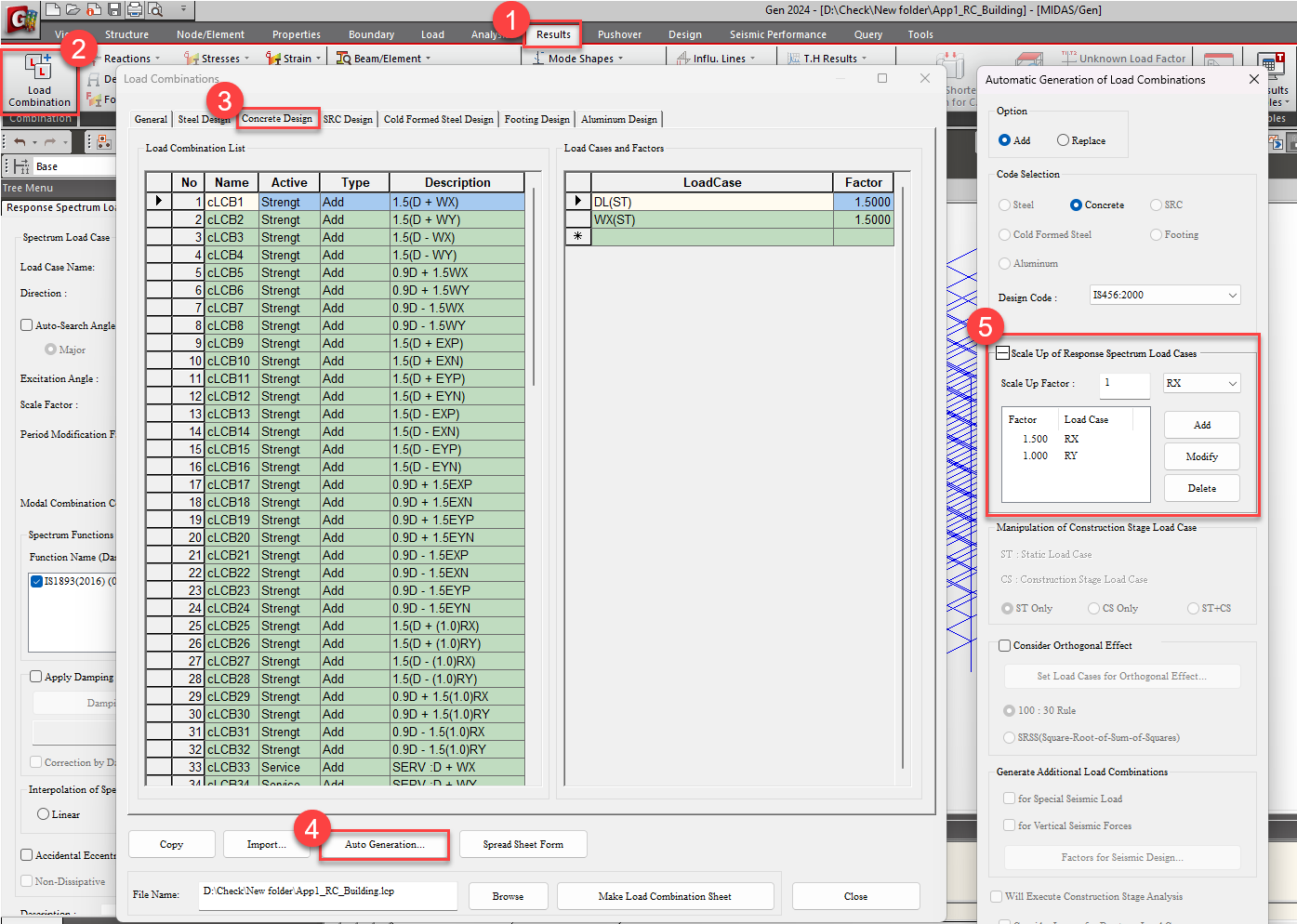

2. During Load Combination Definition:
You can also apply the base shear correction factor while defining your load combinations.
- Click on Results
- Click on Load Combination
- Go to Steel Design / Concrete Design
- Click on Auto Generation ...
- Choose IS 456:2000 in Design code dropdown
- Use Scale Up of Response Spectrum Load Cases
These methods allow you to incorporate the necessary adjustments for base shear in a clear and efficient manner.
