Question
What is the procedure to link a MIDAS Gen model with Design+ for further design work?
Answer
Linking MIDAS Gen with Design+ allows users to seamlessly transfer analysis results and structural elements for detailed member design. Follow the steps below to establish the connection:
Step-by-Step Procedure:
- Complete Analysis in MIDAS Gen:
Ensure that the structural model has been analyzed and the design is completed in MIDAS Gen.

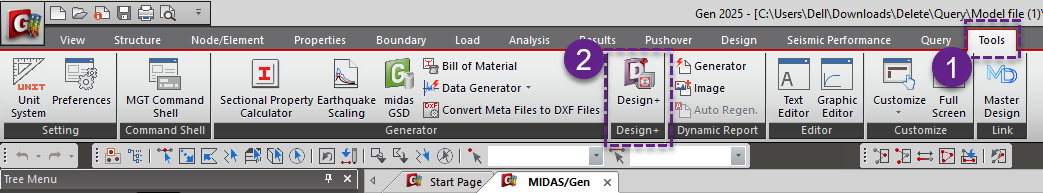

- Access Design+ from Gen:
Navigate to: Tools > Design+

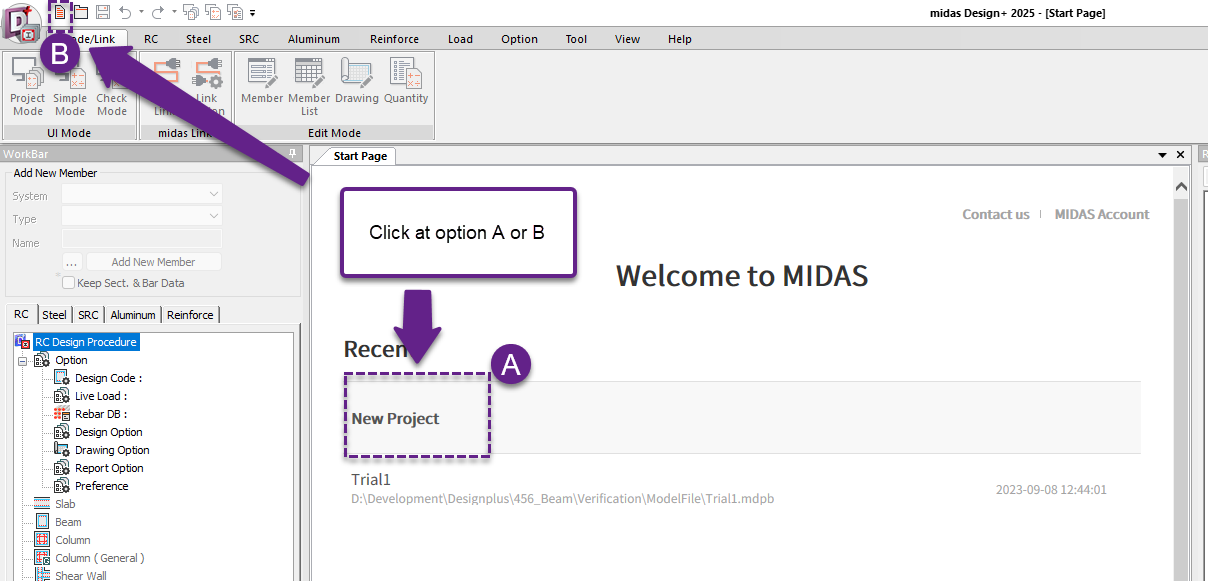

- Create a New Project in Design+:
In the Design+ interface, click “New Project” to initiate the design session.

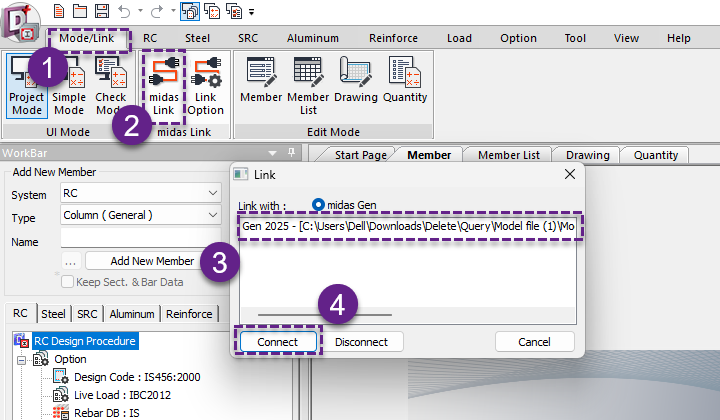

- Link the Model:
- Go to: Mode/Link > MIDAS Link
- Select the desired Gen model from the list
- Click Connect to establish the link.

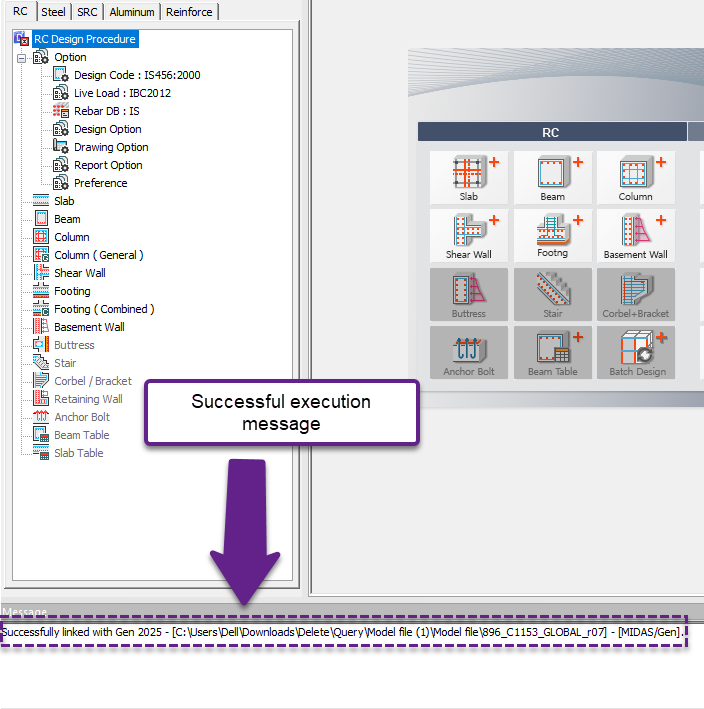

- Confirmation Message:
A success message will appear indicating that the link has been established successfully as below.
Important Notes When Linking MIDAS Gen with Design+:
To ensure a successful and error-free transfer of data between MIDAS Gen and Design+, the following points must be carefully checked:
- Matching Design Codes: The design code for steel or concrete structures must be the same in both MIDAS Gen and Design+.
- Rebar Code Consistency (for Concrete): For reinforced concrete structures, the rebar code used in MIDAS Gen must also match the one selected in Design+.
