Question
How to show only representative reinforcement in the CAD view?
Answer
This can be done by using the Rebar Group function available in CAD ID.
This function can be found by navigating through the ribbon menu in the CIM mode of CAD ID.

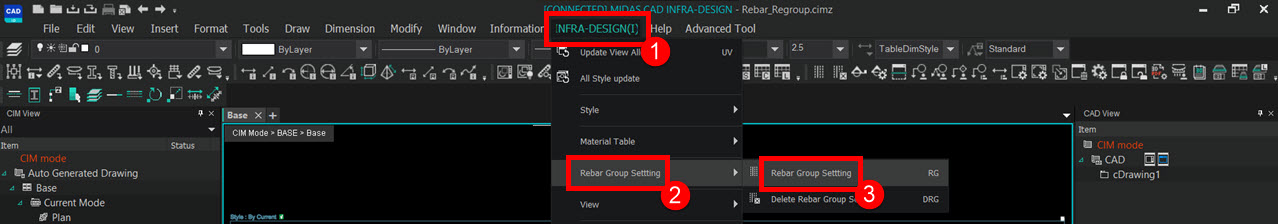

Infra Design > Rebar Group Setting > Rebar Group Setting.
This can also be found in the CAD ID interface, as shown in the image below.
Next, in the Command Bar, a message with Select Group Object appears.
This can be found in the CAD ID interface as shown in the image below.

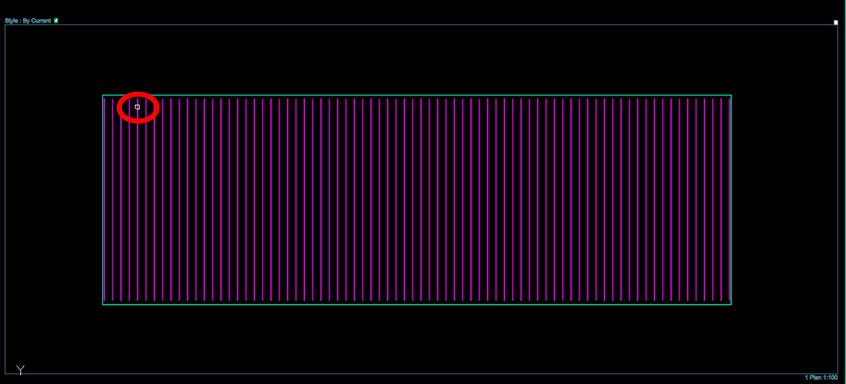

Now, with the cursor pickbox, choose and select the group of rebar in a view.
This is highlighted in the CAD ID window in the image shown below.
Next, the Command Bar displays, Select representative Rebar [Undo (U)]:
This is highlighted in the CAD ID window in the image shown below.

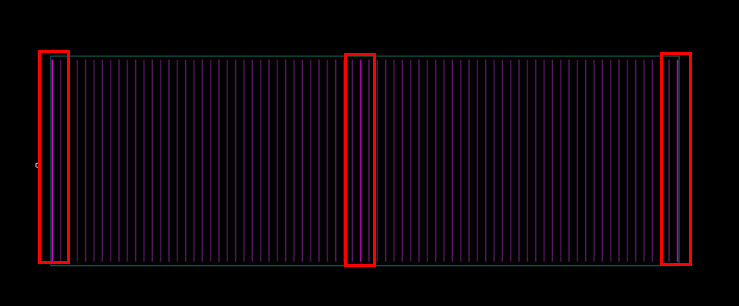

Now, use the cursor pickbox to choose the rebars from the view to be displayed in group.
This is highlighted in the CAD ID window in the image shown below.
Now, press (Spacebar/Enter) to apply the command.
The final output of the view is displayed.
This is highlighted in the CAD ID window in the image shown below.
With the Rebar Group function, representation of group of rebars can be achieved as shown in the image above.
