[CIVIL NX] Rebar Defination

Question

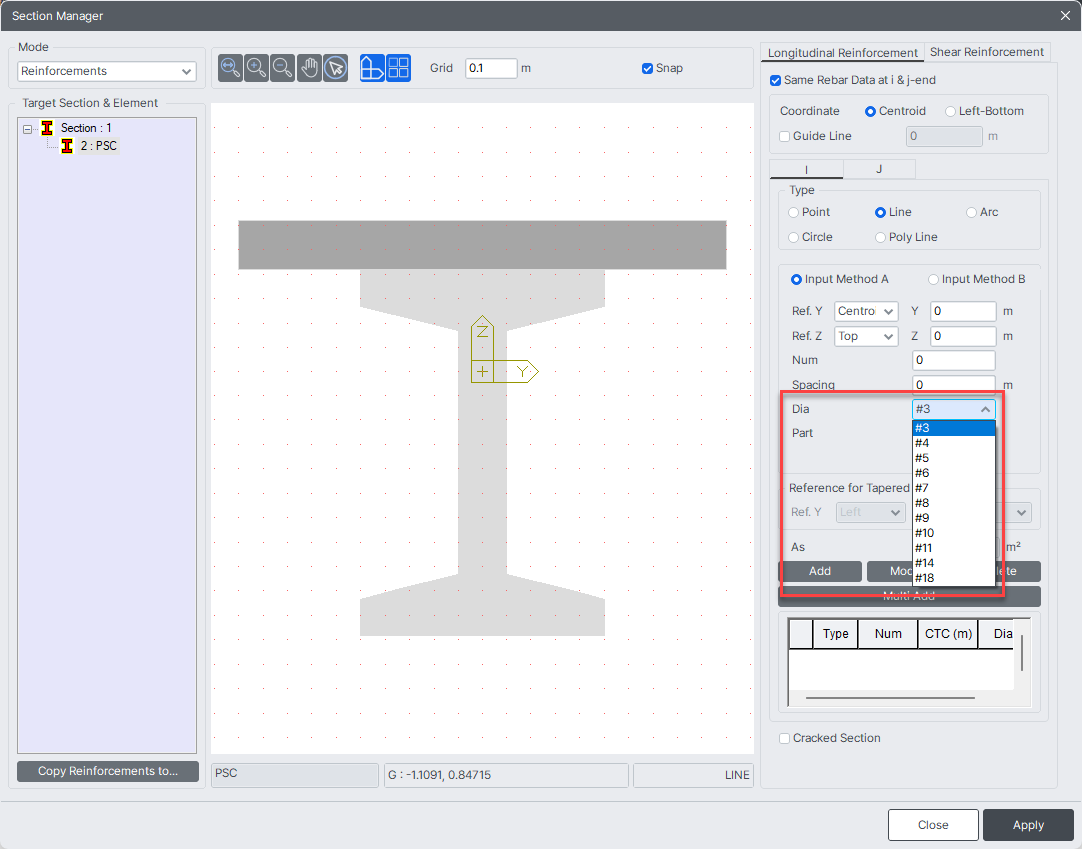

How to change the Rebar type while assigning reinforcement to Section for Design?

Answer

To Change Rebar type as per different code, follow the steps as shown below.

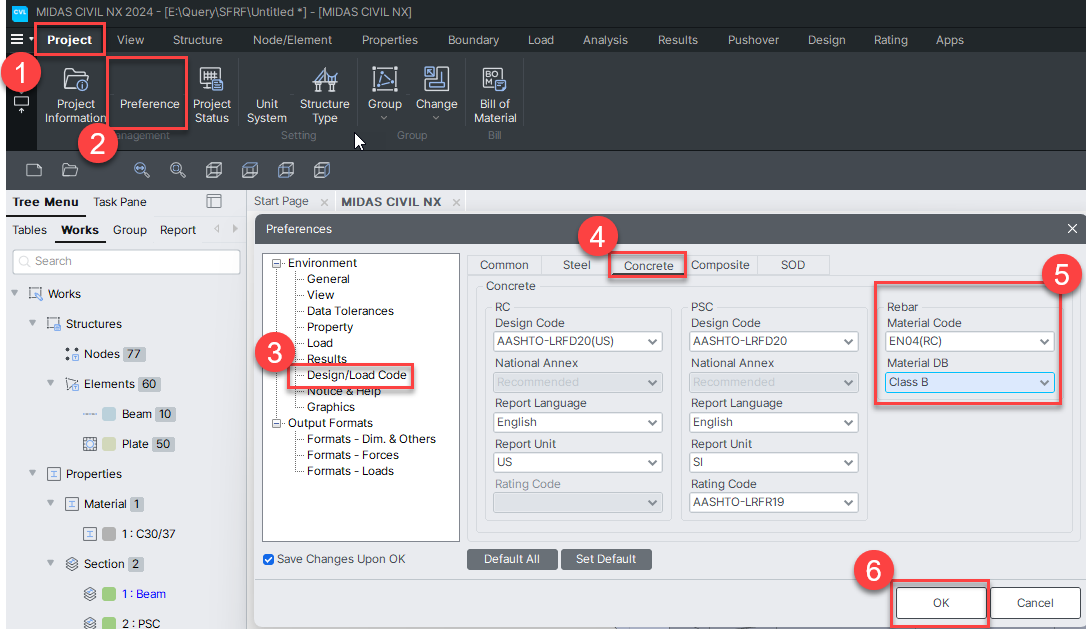

Project > Preferences > Design/ Load Code > Concrete > Update Rebar Code > OK
