Question
How can the drawings be updated after modifying the CIM model?
Answer
Consider that we have already generated drawing views from a CIM model. After this, you made some modifications to the 3D model. To reflect these changes in the drawing view, follow the steps below:

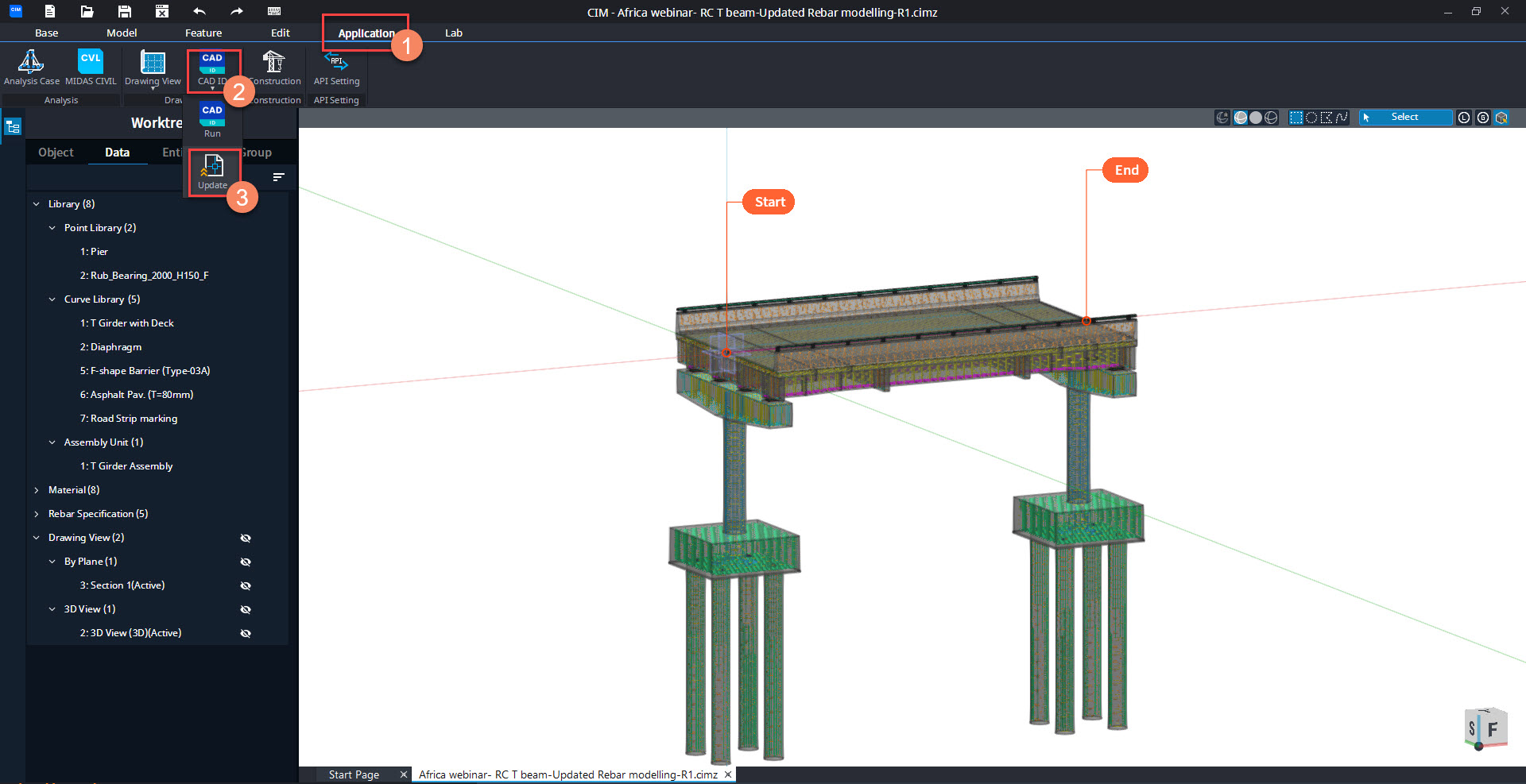

- Click on the Application Ribbon in CIM.
- Click on the CAD ID option.
- From the drop-down list, select the Update option.

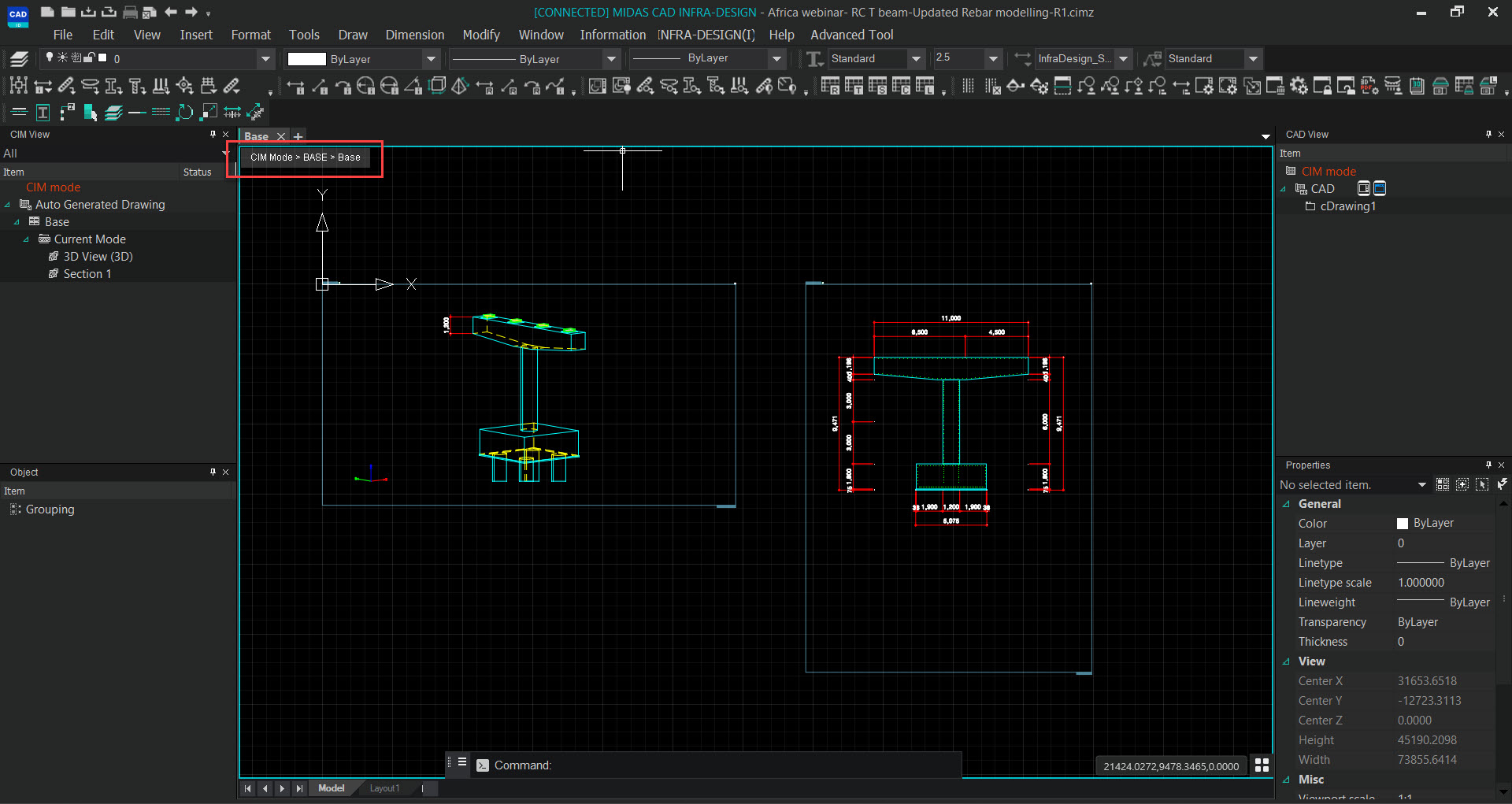

- Open CAD ID and ensure you are in CIM Mode.

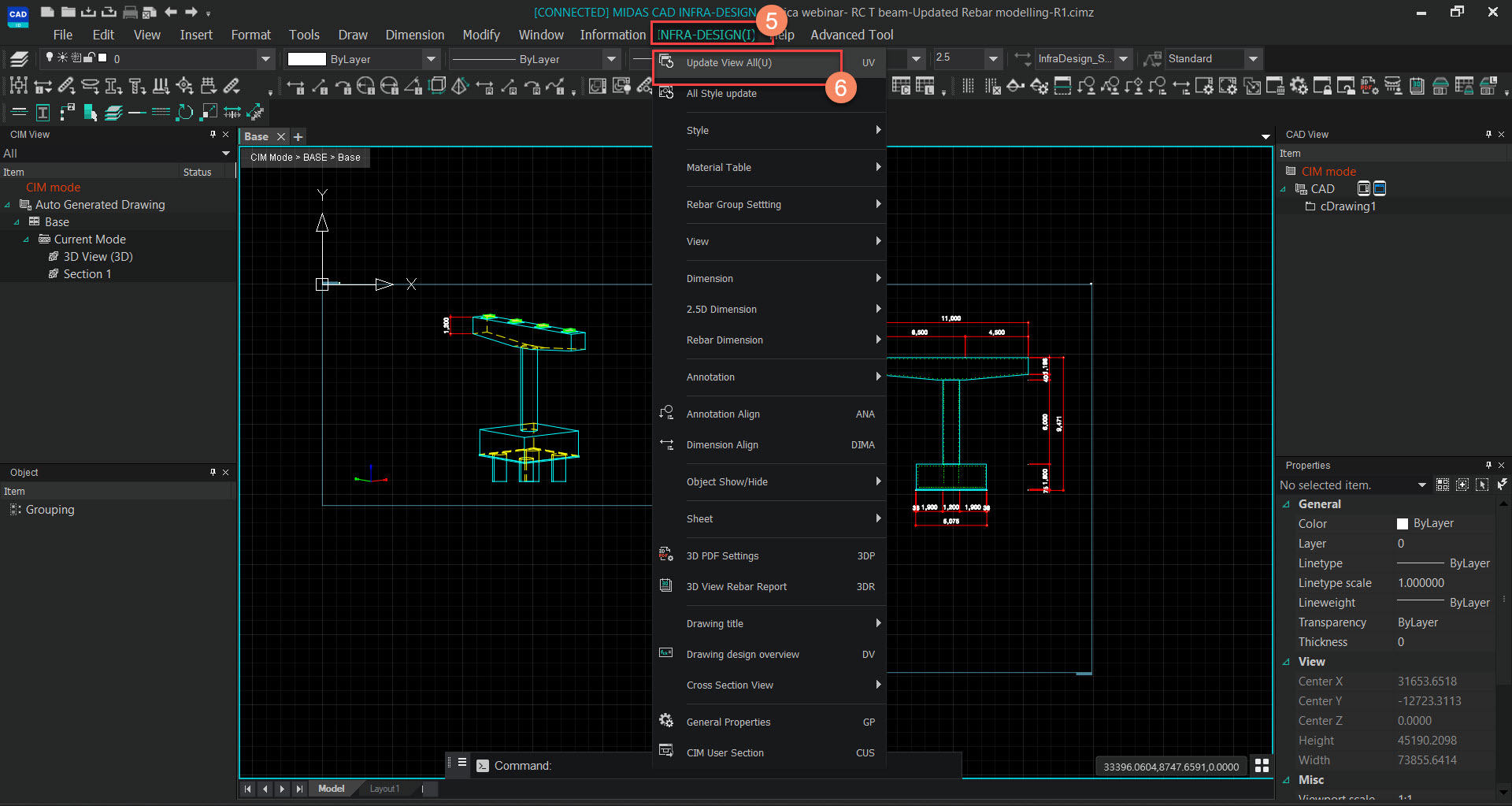

- Click on the Infra Design ribbon.
- From the drop-down list, select the Update View All (U) option.
- All drawing views will now be updated according to the modifications made to the CIM model.
