[GEN] Irregularity checks as per IS 1893 : 2016.

Question

How to perform Irregularity checks as per IS 1893 : 2016 ?

Answer

To perform Irregularity checks in accordance with IS 1893:2016, follow the steps outlined below:

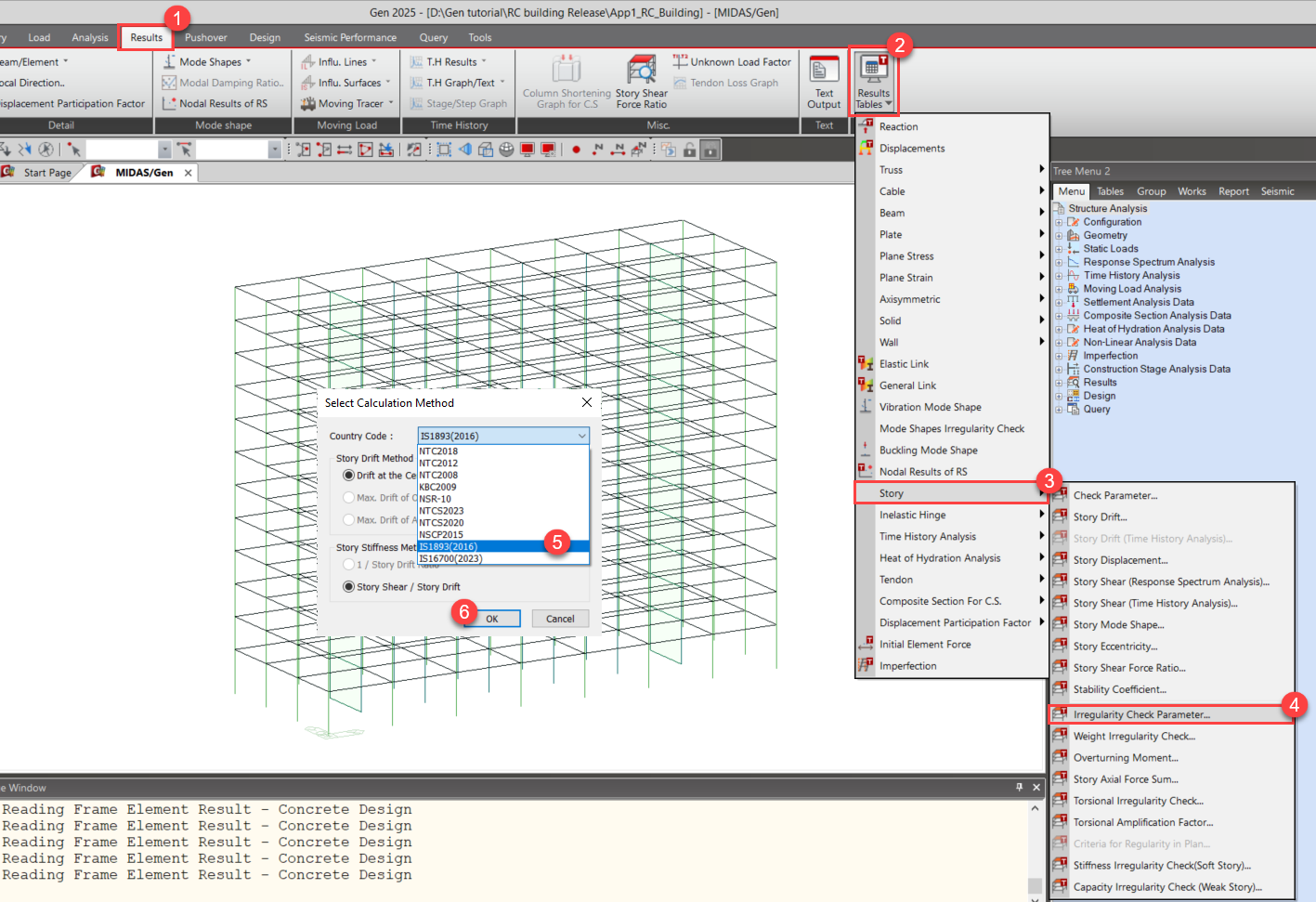

• Navigate to the Results tab and select Results Table > Story > Irregularity Check Parameter.
• Set the design code to IS 1893:2016 to enable all irregularity checks as per the standard.

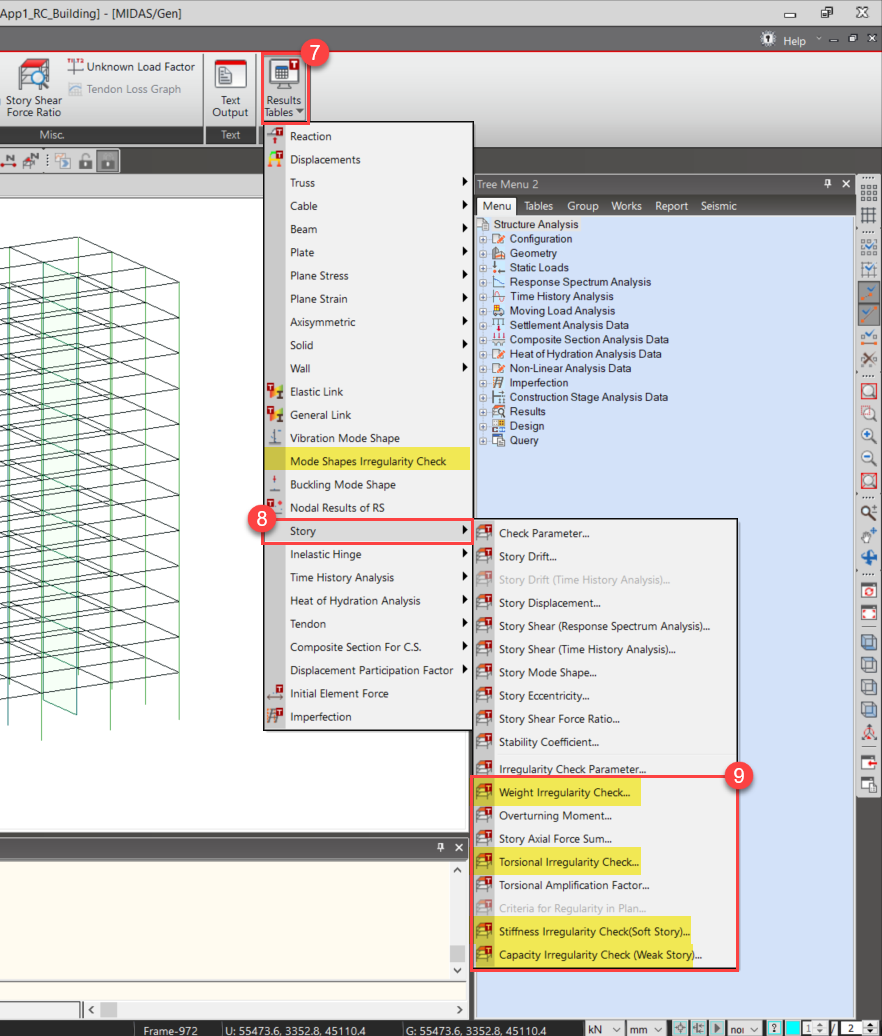

• Return to the Results tab, access the Results Table, and select Story. Then, choose the specific irregularity check to review.
• Irregularity checks available as per IS 1893 : 2016 are as listed below :

1. Weight Irregularity check.
2. Torsional Irregularity check.
3. Stiffness Irregularity check.
4. Capacity Irregularity check.
5. Mode shapes Irregularity check.
