Question
How to resolve the 'Cannot Cognize Command' error in CAD ID?
Answer
Sometimes, when working with CAD ID, users may encounter the 'Cannot Cognize Command' error in the following scenarios:

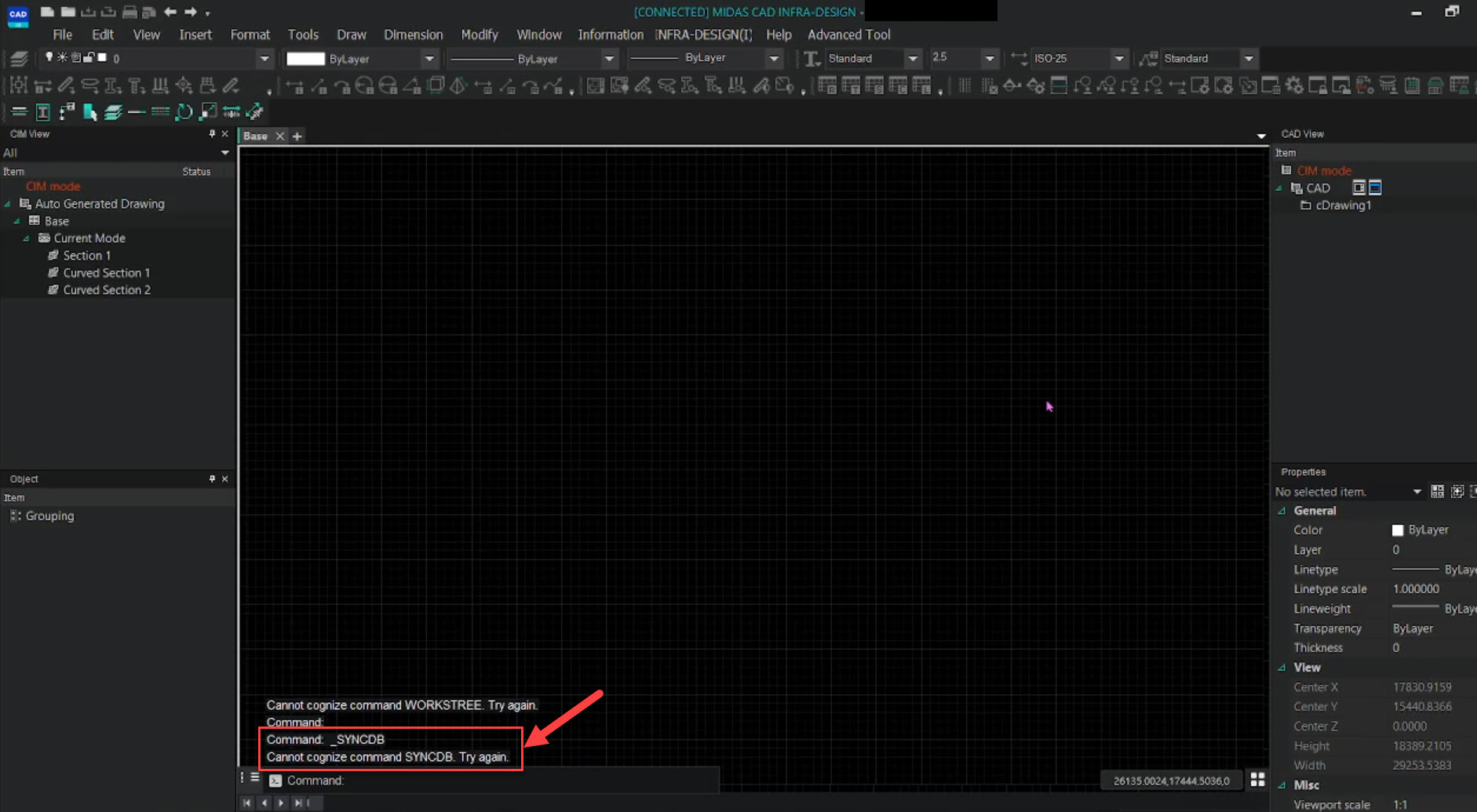

Case 1: When a drawing view is created in CIM and you try to view it in CAD ID, the error "Cannot Cognize Command SYNCDB" will be displayed.

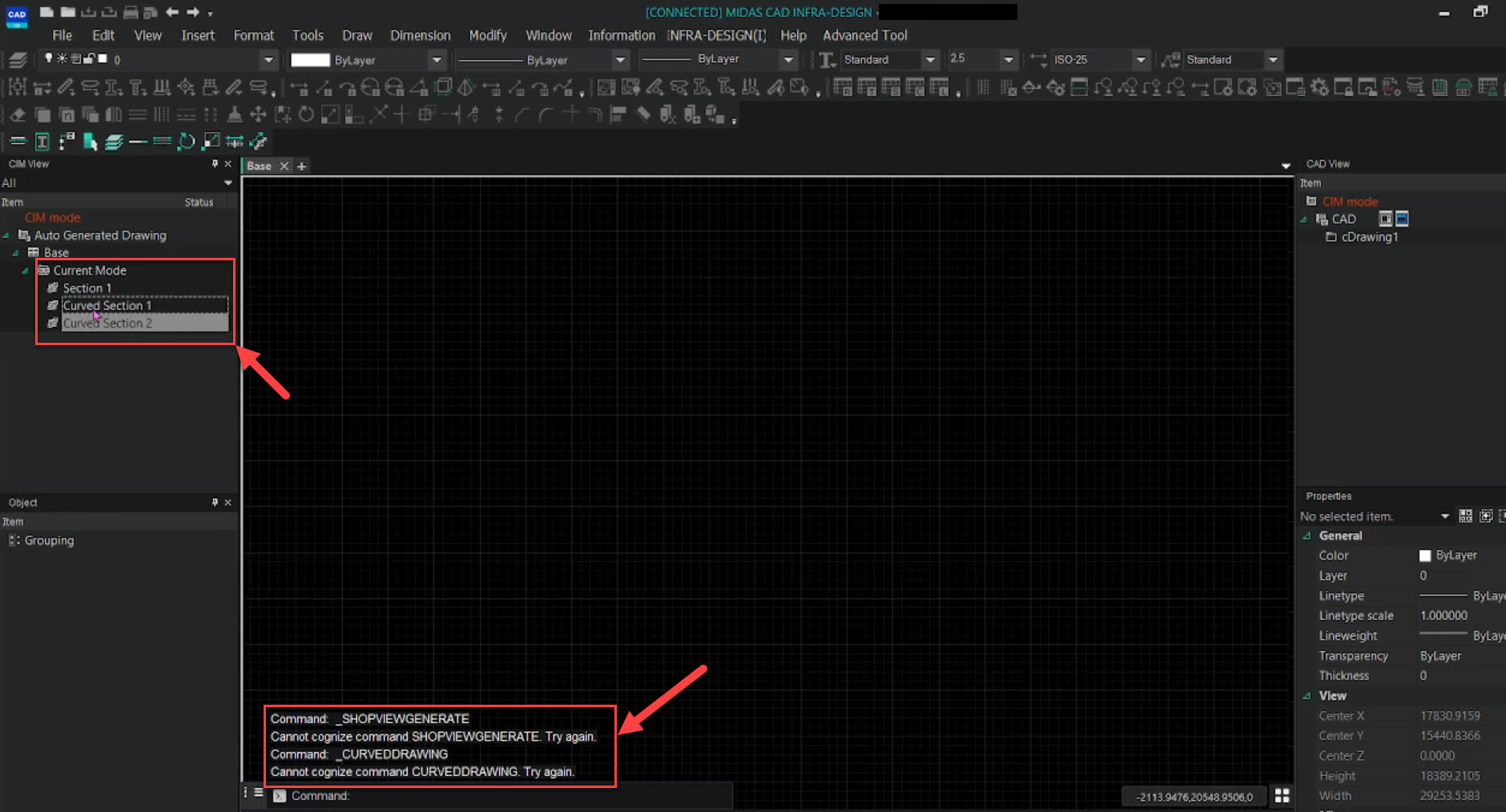

Case 2: When you double-click on the drawing views listed in the 'Item' Panel in CIM Mode of CAD ID, the error "Cannot Cognize Command SHOPVIEW GENERATE" will be displayed.
Case 3: When you type any CAD ID-specific commands (such as CIMUSERSECTION, CHANGEMODE, etc.) in the command box, the "Cannot Cognize Command" error will be displayed.

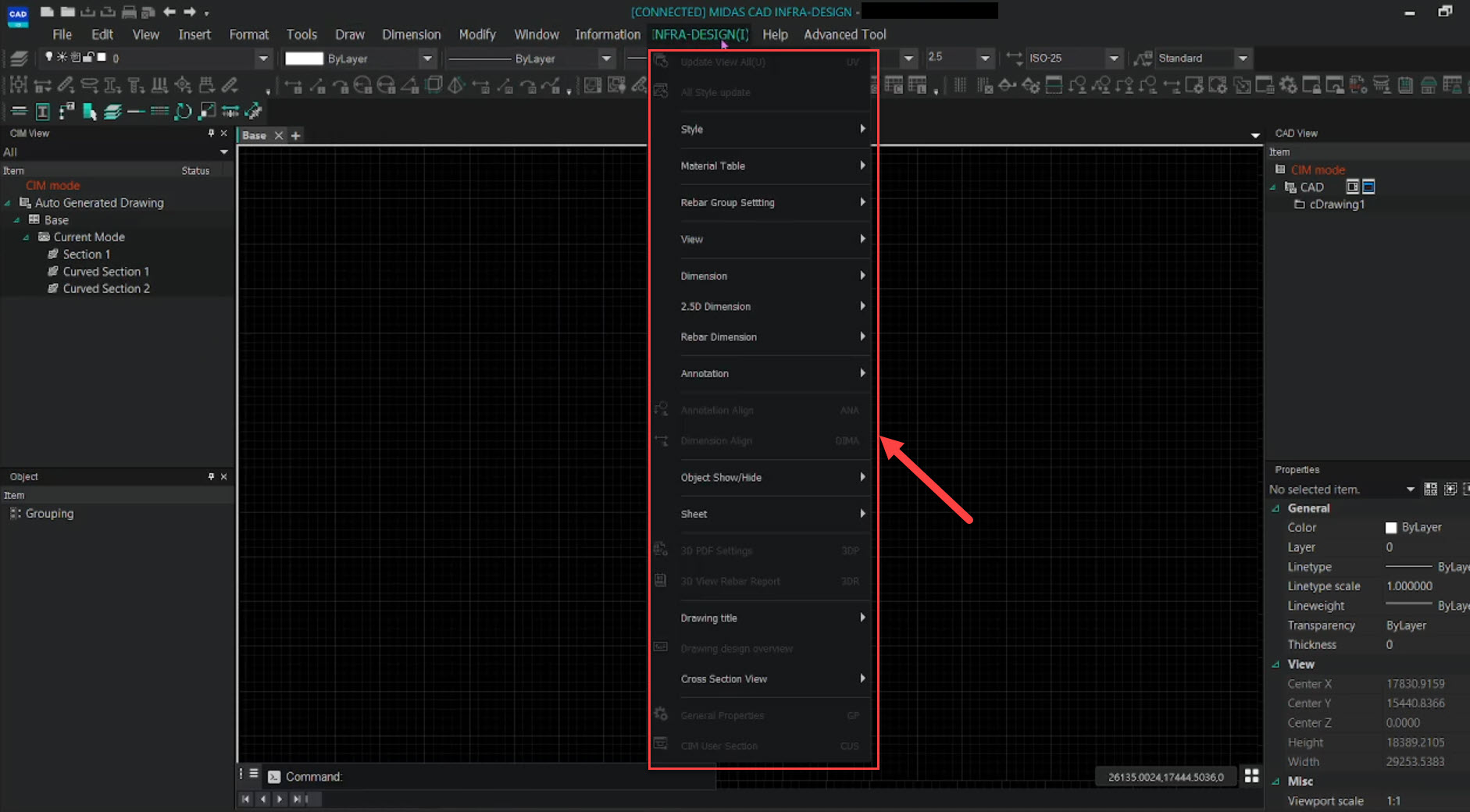

Case 4: The options in the drop-down menu of the 'Infra-Design' tab in CAD ID appear greyed out.
In the above cases, the 'Cannot Cognize Command' error may occur due to an expired CAD ID license. It is recommended to verify the validity of the CAD ID license in such situations.
If the issue persists even after renewing the license, the Midas Technical Support team should be contacted for further assistance.
