Question
How do I authenticate MIDAS CAD?
Answer
To authenticate MIDAS CAD, you must enter your User ID, Password, and Authentication Key through the authentication window.
The authentication process slightly differs depending on whether you are launching the program for the first time or not.
If a new project does not open automatically (first-time installation)

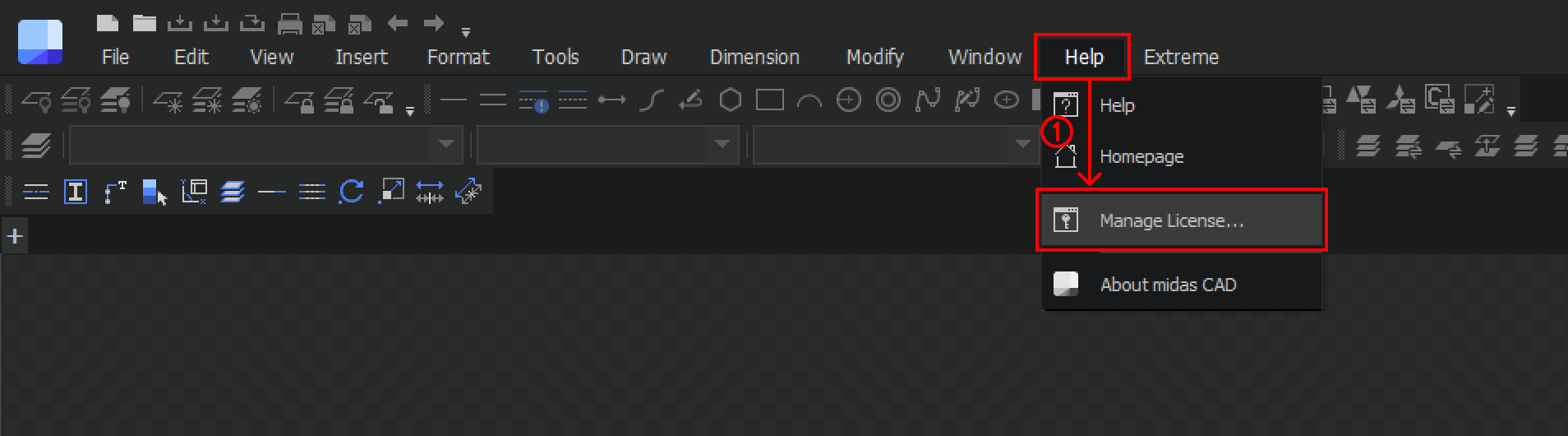

1. Run MIDAS CAD and go to the top menu. Click [Help] > [Manage License...].

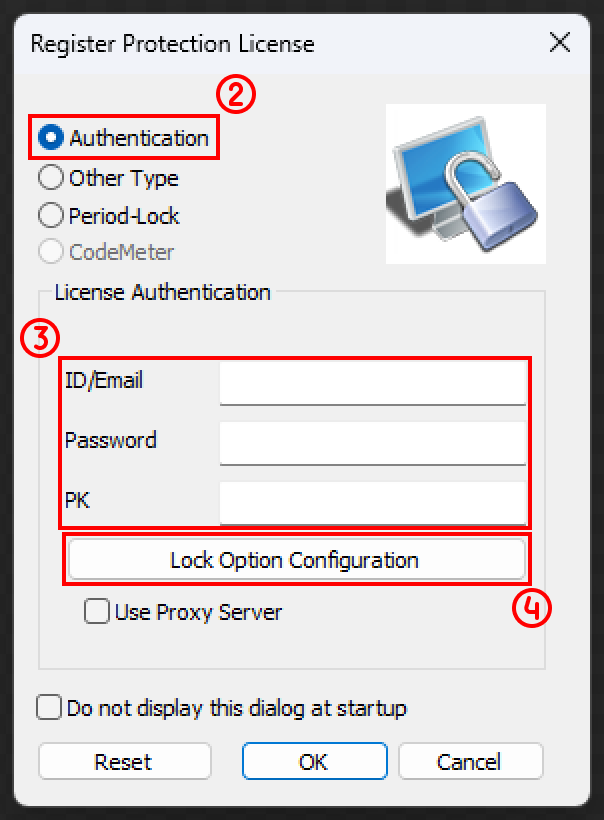

2. In the Register Protection License window, select Authentication as the license type.
3. Enter your ID/Email, Password, and PK.
4. Click the [Lock Option Configuration] button to proceed.

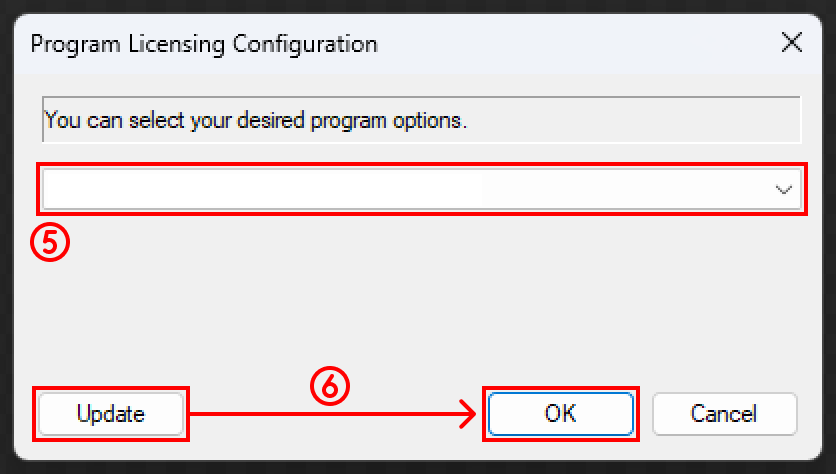

5. In the Program Licensing Configuration window, select the product you want to use from the dropdown.
6. Click the [Update] button, then click [OK] to apply the settings.

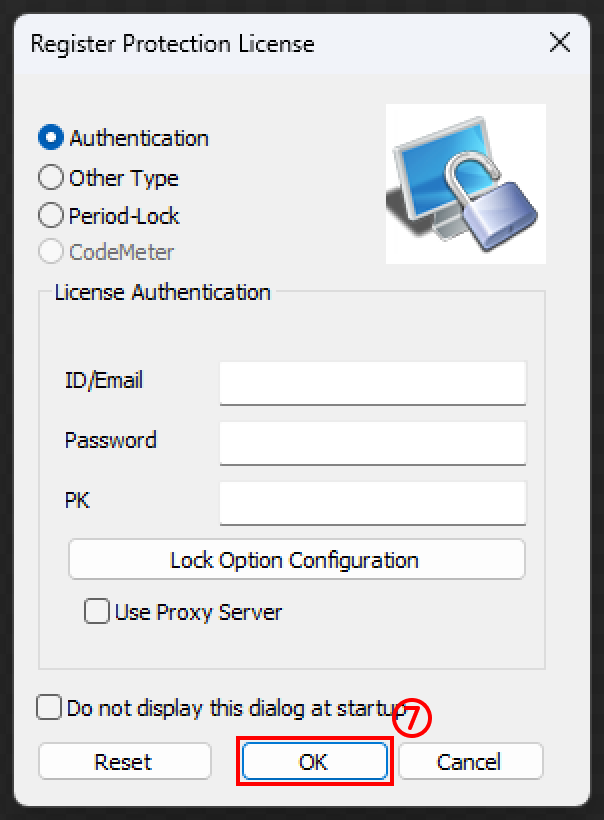

7. In the previous window, click [OK] again to complete the authentication process.
If a new project opens automatically (previously used)

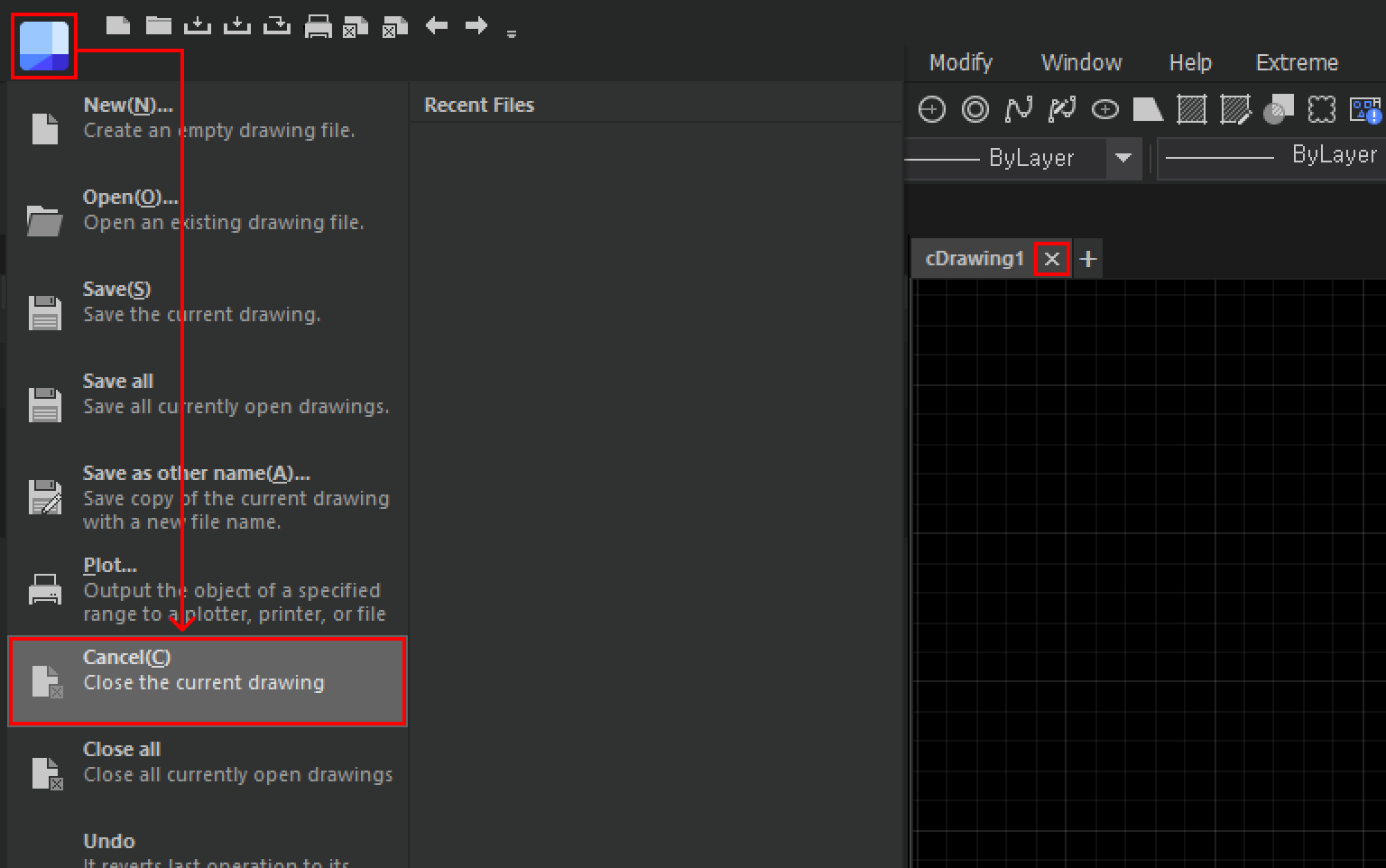

1. Click the MIDAS CAD icon in the upper left corner of the screen.
2. In the context menu, click [Cancel] to close the opened project.
You can also close the file using the Close button at the top-left of the model window.
3. Then follow the same steps as described above for first-time users.
