Question
How to change the pick box size in CAD ID?
Answer

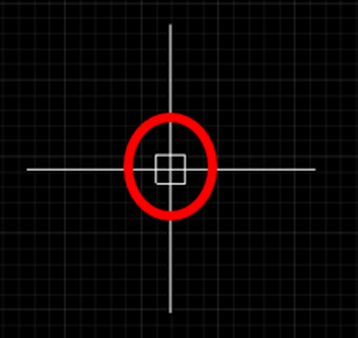

In CAD ID, the cursor pick box size can be modified based on the users requirements.
To perform this function use the command PICKBOX in the command bar as shown below.

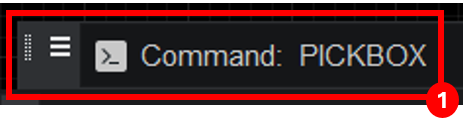

Step 1 - In the command bar enter PICKBOX and press enter.
The command line displays a message "Enter new value for PICKBOX" here, input the new size as shown below.

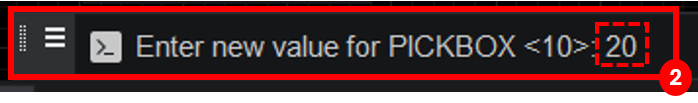

Step 2 - In the command bar enter the value as 20 and press enter.

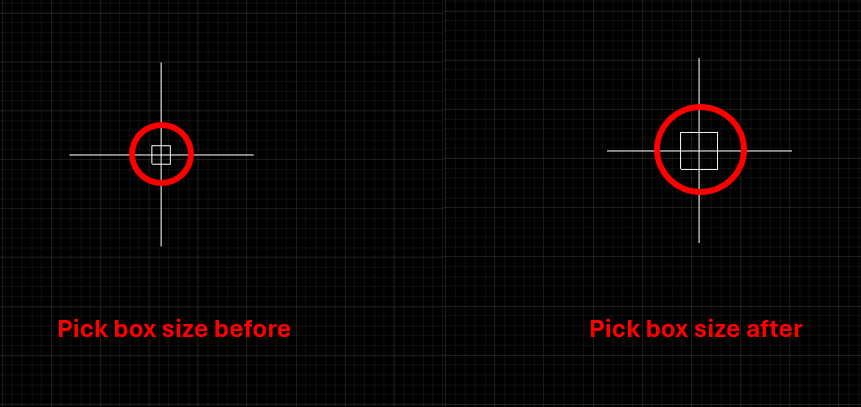

The revised pick box size is displayed in the model space as shown below.
The pick box size change function is successfully performed.
