How to insert a sheet in the drawing view of CAD ID?
Answer
In CAD ID, to create layouts for views, a function is available. To access this function check the steps below.

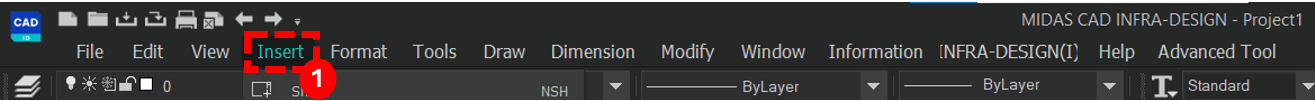

Step 1- In the interface click on Insert
Next, in the sub function choose the option SHEET as shown below

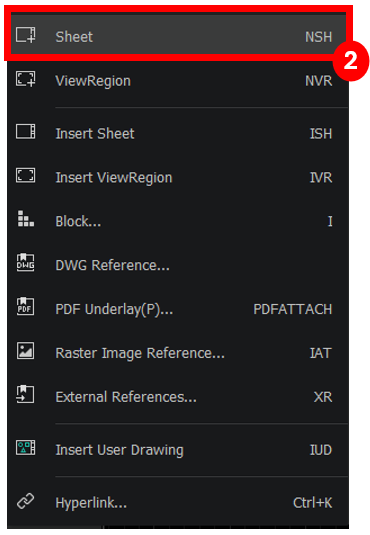

Step 2 - In the interface click on Sheet
The Insert Sheet window displays the properties-
Sheet Name : View name can be used here, or can be modified manually
Sheet No: Alphabets and Numbers can be used for the numbering of the respective sheets
Sheet Scale : Can be selected from the drop down
Sheet Format : Default size of A1 and A3 can opted
Preview : In the preview pane the sheet shall be visible, before it is loaded in the model space.

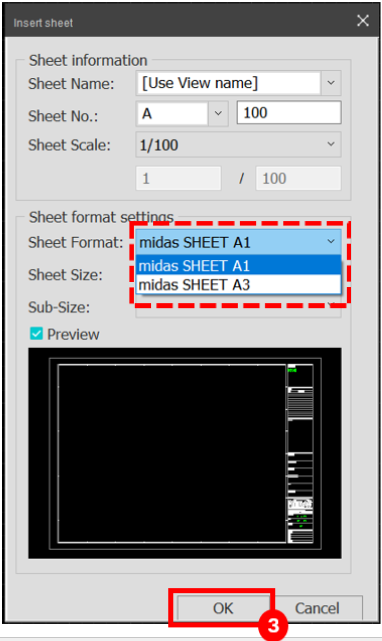

Step 3 - In the sheet format panel choose midas SHEET A1 and click OK
In the model space, use the cursor to place the view at the desired location or input the values of of X and Y and press enter.

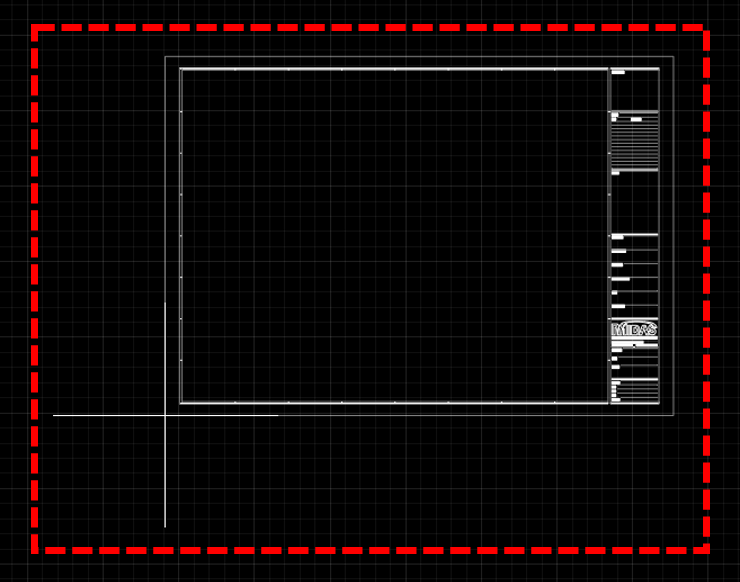

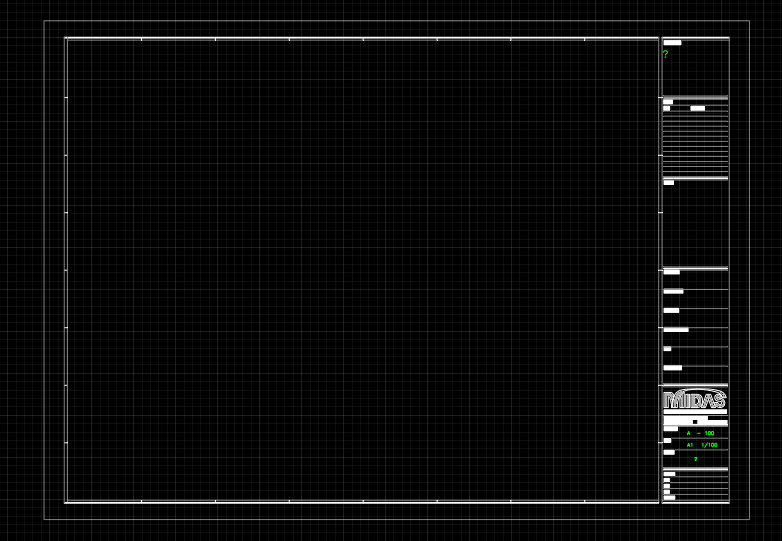

The selected sheet is displayed in the model space as shown below
The insert sheet function is completed successfully.
