Question
How to use the “CUS” command in CAD ID for generating a user-section profile?
Answer
Follow the steps below to create a user-section profile using CUS command of CAD ID:

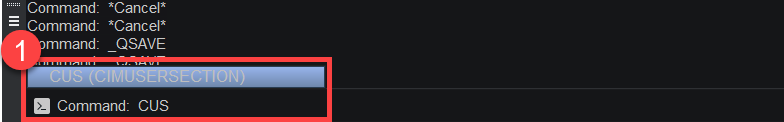

Step 1: In the command line, type CUS [CIMUSERSECTION]

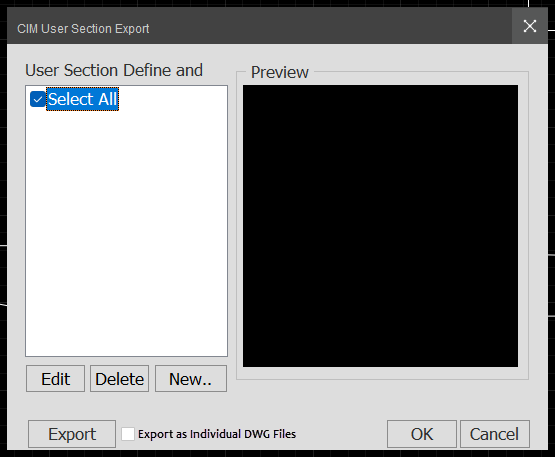

Step 2: A dialogue box shall appear as shown below:
New: Create a New section profile.
Delete: To delete any predefined section profile.
Edit: To edit any predefined section profile.
Export: To export the selected predefined section profiles as a separate DWG file.
If you check-on the option beside Export button, all the section profiles will be exported as individual DWG files.
OK: To save the work done in the CUS command.
Cancel: To cancel/unsave the work done in the CUS command.
A detailed explanatory video including all the necessary steps is attached below.
🔗Watch the explanatory video here:
