Question
After creating multiple drawing views in CIM, the views are overlapping in CAD ID. How can I fix this issue?
Answer
To resolve the issue of overlapping drawing views in CAD ID, follow the steps below:

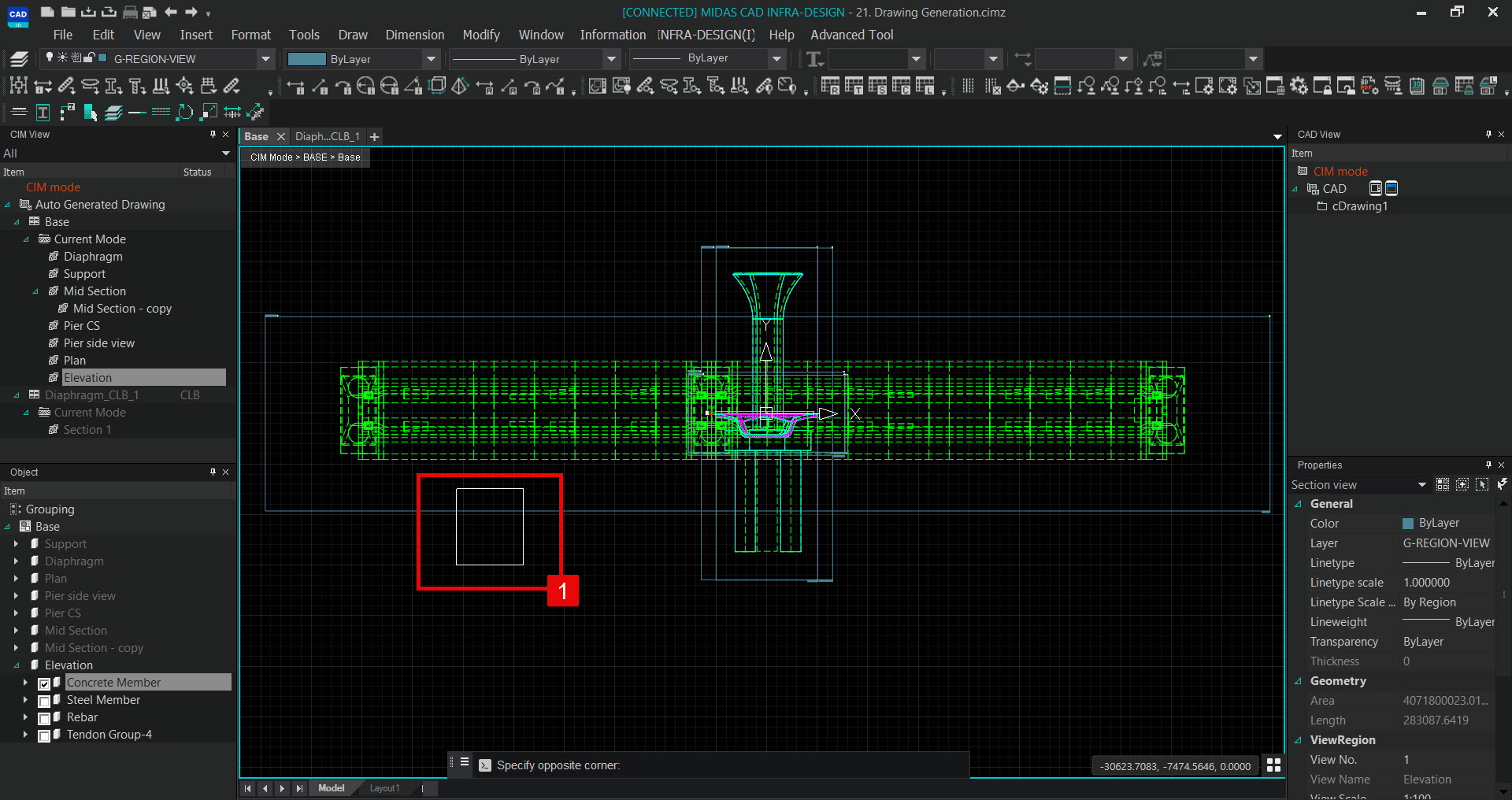

Step 1: In CAD ID, select the boundary box of the drawing view using the mouse.

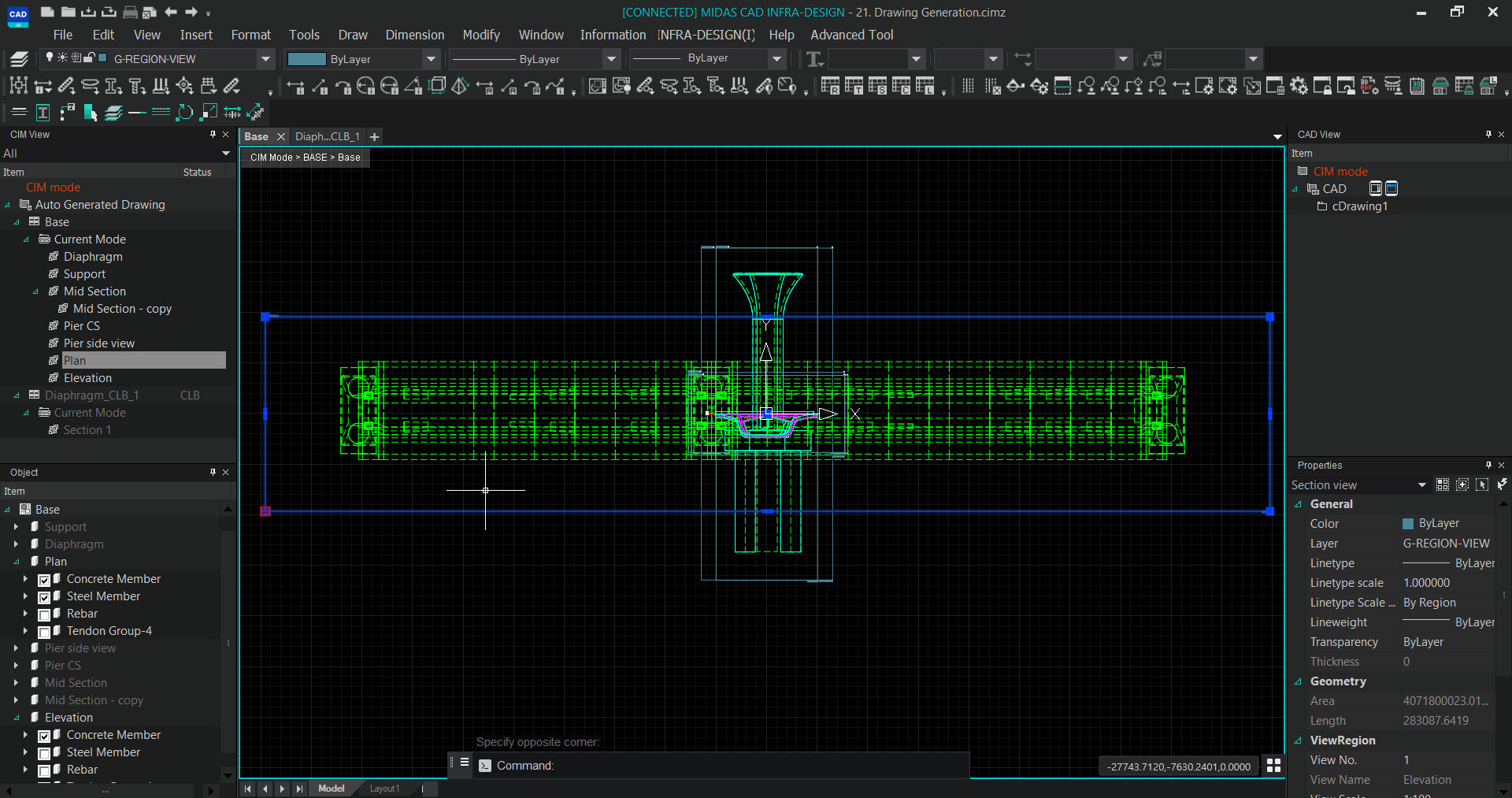

Once selected, the boundary box will be highlighted, as shown below.
Step 2: Click on the blue square located at the center of the boundary box with the left mouse button.
Step 3: Move the mouse to the desired location where no other drawing view exists, and left-click to place the view.

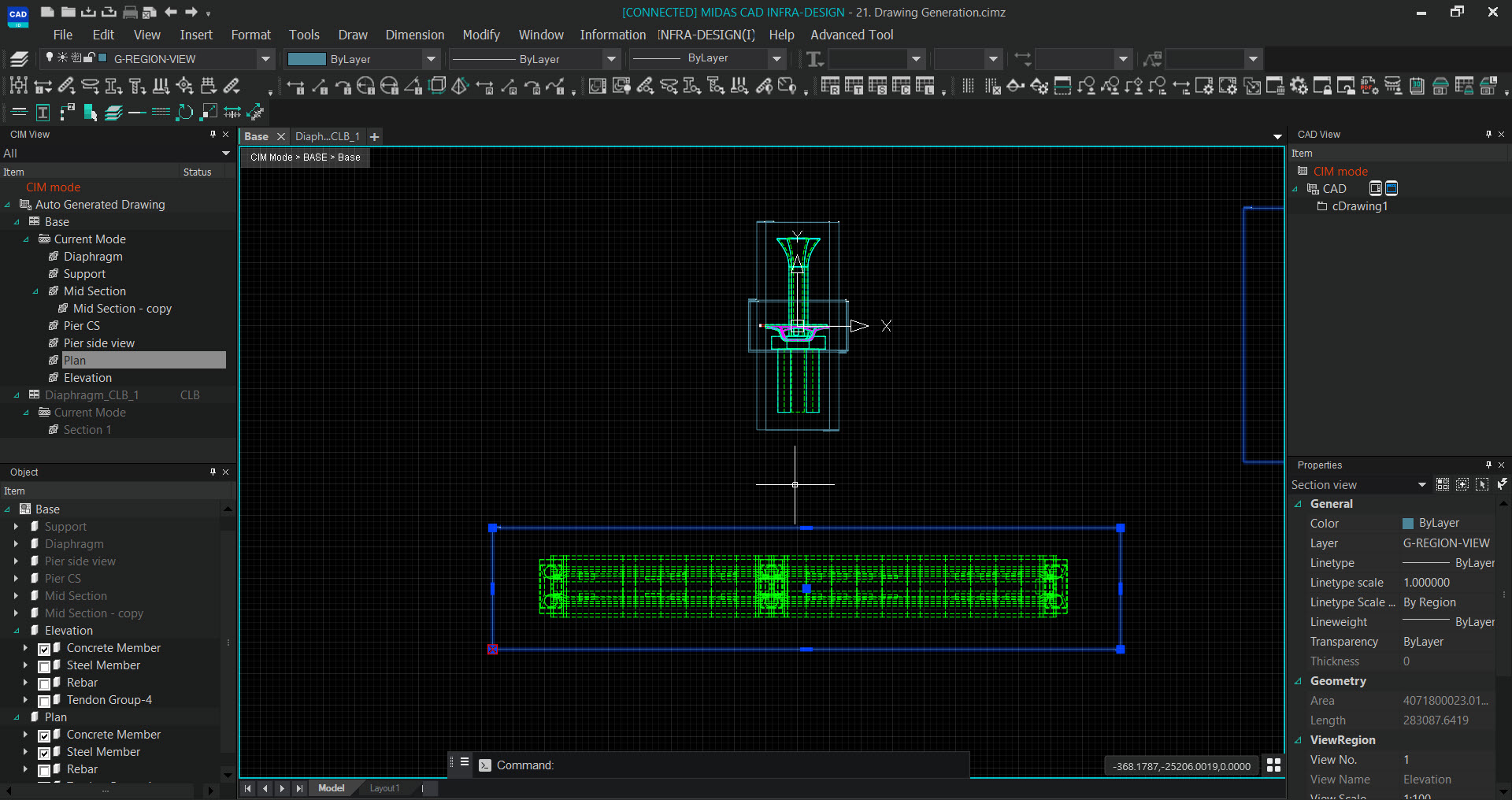

The drawing view will now be repositioned to the new location.
Repeat these steps for other drawing views to place them appropriately and remove any overlaps.
