Function
Modify the parameters of the generated design strip sections, including the section position and effective widths used for post-tension design calculations.
This feature allows users to review and modify design section inputs for individual design strips and spans.
Call
From the Main Menu
select [Post Tension] tab > [Design Strip] group > [Design Strip] > [Modify Design Strip Section]
Input

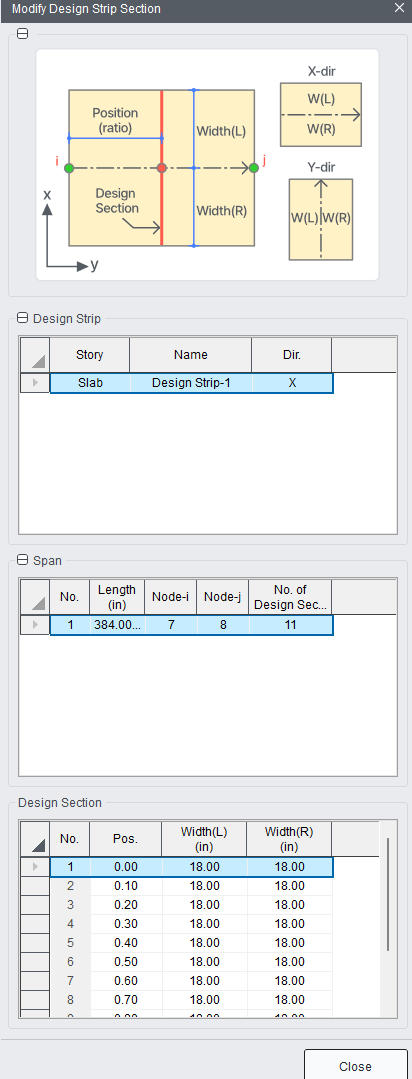

Modify Design Strip Section
Design Strip
Story: Name of the story defined in the Story Data
Name: Name of the design strip generated automatically
Dir.: Direction of the selected design strip (X or Y)
Span
No.: Identification number of the span within the selected design strip
Length: Length of the span
Node-i: Start node (i-end) of the span
Node-j: End node (j-end) of the span
No. of Design Sections: Number of design sections generated within the span
Design Section
No.: Identification number of the design section within the selected span
Pos.: Relative position (Ratio) of the design section measured along the span length
Width (L): Effective width assigned to the left side of the design section
Width (R): Effective width assigned to the right side of the design section
