Function
To view the properties and parameters of all design strip sections defined within the model.
The Position, Width (L), and Width (R) values can be modified directly within the table. Any modifications are automatically updated in the corresponding design strip sections.
This table provides a convenient way to review and edit multiple design strips and design sections simultaneously without selecting them individually from the model view.
Call
From the Main Menu
select [Post Tension] tab > [Design Strip] group > [Design Strip Table]

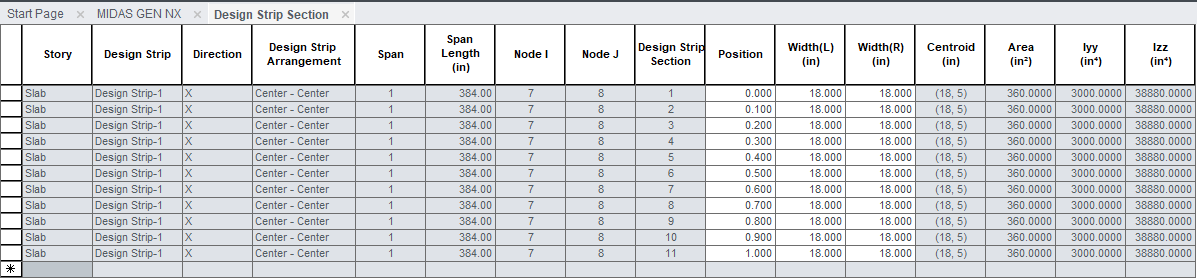

Table
Design Strip Section
Story: Name of the story defined in the Story Data
Design Strip: Name of the design strip generated automatically
Direction: Direction of the design strip (X or Y)
Design Strip Arrangement: Center - Center (or) Edge - Edge
Span: Identification number of the span within the design strip
Span Length: Length of the span
Node I: Start node (i-end) of the span
Node J: End node (j-end) of the span
Design Strip Section: Identification number of the design section within the span
Position: Relative position (ratio) of the design section measured along the span length
Width (L): Effective width assigned to the left side of the design section
Width (R): Effective width assigned to the right side of the design section
Centroid: Location of the geometric centroid of the design section, determined from the effective width and depth of the design section
Area: Cross-sectional area of the design section
Iyy: Moment of inertia of the design section about the major axis (y-axis)
Izz: Moment of inertia of the design section about the minor axis (z-axis)
