R.C. Slab Bridge Wizard

Function

Automatic wizard function generates the influence line model of RC slab bridge by inputting only basic variables.
For a detailed explanation of the model data automatically generated by the R.C. Slab Bridge Wizard.

From the main menu, select [Structure] tab > [RC Structure] group > [RC Slab Bridge]

Structure-Wizard-RC Slab Bridge.png

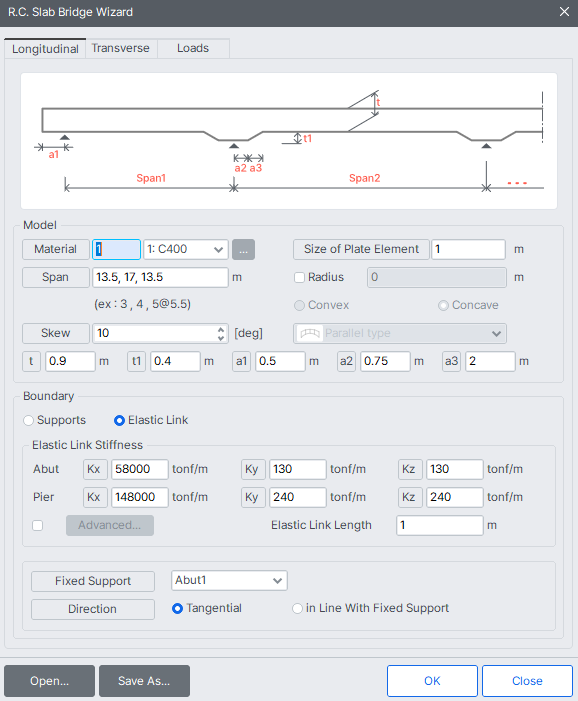

Fig. R.C. Slab Bridge Wizard Longitudinal dialog box
