R.C. Frame/Box Wizard

Function

The Wizard automatically generates analysis models for general frame, underground frame, and Pi-type frame bridges and culverts.

From the main menu, select [Structure] tab > [RC Structure] group > [RC Frame/Box]

Structure-Wizard-RC Frame Box-longitudinal.png

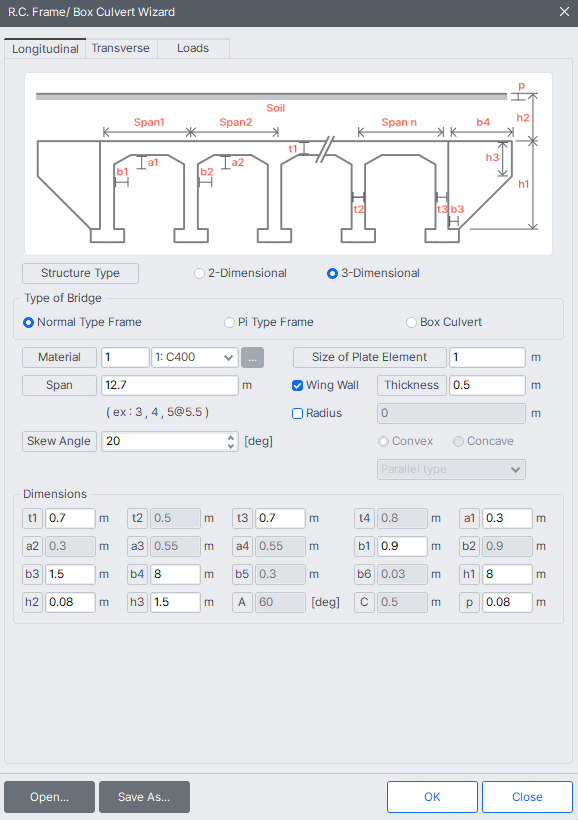

Fig. R.C. Frame /Box Culvert Wizard Longitudinal dialog box
