Function
- Move or copy existing elements at equal or unequal spacings.
Call
From the main menu, select [Node/Element] tab > [General] group > [Translate] > [Translate Element]
Input

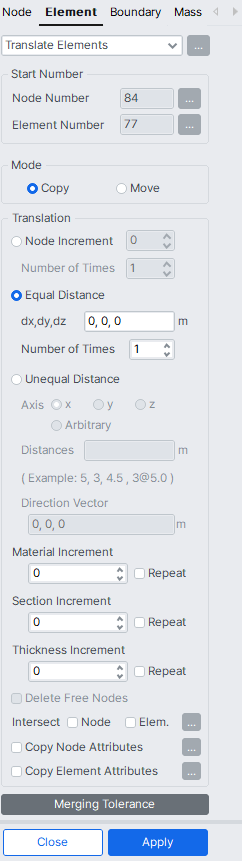

Translate Elements dialog box
Click
to the right of Translate Elements
Display the Element Table.
Start Number
Node Number
Assign a starting number of the nodes automatically created in the element generation process. This number is auto-set to the largest node number in use +1. To modify this item, click and select an option to specify a desired number.
Element Number
Assign a new starting element number for new elements being created by copy. This number is auto-set to the largest element number in use +1. To modify this item, click and select an option to specify a desired number.
Mode
Copy : To copy elements
Move : To move elements
Translation
Node Increment
Node increment is used when elements are copied (or moved) using existing nodes.
Number of Times : Number of times to copy
Equal Distance
To copy (or move) at an equal spacing
dx, dy, dz
Copy (or move) distance in each axis direction.
To enter the copy (or move) distance, type in each distance, or click the entry field and assign the copy (or move) distance in the working window with the mouse.
Number of Times : Number of times to copy
Unequal Distance : Copying (moving) at unequal spacings
Axis : Assign copy (or move) direction.
x : To copy at unequal distances in UCS x-direction
y : To copy at unequal distances in UCS y-direction
z : To copy at unequal distances in UCS z-direction
Arbitrary : To copy at unequal distances in a specified direction
Distances : Enter unequal copy distances in the specified direction as many times as desired.
(Ex. 5, 3, 4.5, 3@5.0, 4 = 5, 3, 4.5, 5.0, 5.0, 5.0, 4)
Direction Vector : If a specific direction is selected, enter the direction vector components in each of the x, y, z-directions.
Material Inc.
An increment for material property numbers while copying elements.
Rep. : if the field is checked in, the material property number increases by the given increment while the number of copies is repeated
Section Inc.
An increment for section numbers while copying elements
Rep. : if the field is checked in, the sectional property number increases by the given increment while the number of copies is repeated.
Thickness Inc.
An increment for thickness numbers while copying elements
Rep. : if the field is checked in, the thickness number increases by the given increment while the number of copies is repeated.
Delete Free Nodes
Applicable for Move Mode only, Delete Free Nodes automatically removes the remaining original nodes pertaining to the elements being moved.
Intersect
Applicable only for line elements
If Intersect Node is selected and existing nodes are on the created line elements, the elements are divided at the existing nodes.
If Intersect Element is selected and the created line elements intersect with existing line elements, nodes are automatically created and the elements are divided at the intersections.
Copy Node Attributes
Select the option whether to copy the attributes (nodal boundary conditions, nodal concentrated loads, etc.) to the nodes being copied. Click assign desired to attributes selectively.
Copy Element Attributes
Select the option whether to copy the attributes (element boundary conditions, element loads, etc.) to the elements being copied. Click to assign desired attributes selectively.
Merging Tolerance
Specify a merging tolerance to merge newly created nodes and existing nodes.
When moving elements, the nodes connected to the elements are not moved but rather copied at the relevant positions. To also move the nodes, Translate Nodes to move the nodes as well as the connected elements simultaneously.
