Function
-
Enter or modify general link elements in a spreadsheet format table.
Call
From the main menu, select [Boundary] tab > [Tables] group > [Boundary Tables] > [General Link]
Input
(Refer to "General Link")

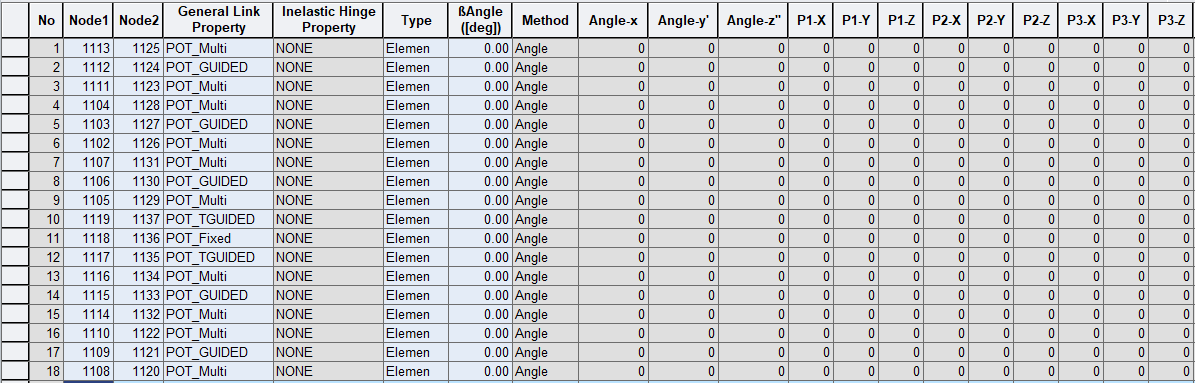

Input or modify the following data using the Table Tool, referring to the usage guide of the Table Tool.
No : General Link element number
Node1 : Node number at the start of General Link element
Node2 : Node number at the end of General Link element
General Link Property : Property of General Link element
Inelastic Hinge Property : In case Element Type is general link element, nonlinear behavior can be reflected by assigning inelastic hinge properties. This is not used for the Force Element Type general link element.
Type : Hinge type of defined inelastic element (Element, Force)
ß Angle : Beta Angle of General Link element
Method : Connection method of General Link element (Beta Angle, Ref. Point, Ref. Vector)
Group : Boundary group name containing the entered boundary conditions
