機能
機能を実行する際に何度もクリックする手間を省くため、MIDAS では コマンドライン と呼ばれる新しい機能を導入しました。
この機能は AutoCAD と類似しており、モデリングや解析の効率を向上させることができます。コマンドラインに短縮コマンドを入力するだけで、関連する機能やダイアログを呼び出すことが可能です。これにより、迅速に解析モデルを作成し、正確な設計を実行することができます。
入力
コマンドラインの使用方法
1. コマンドラインを直接クリックするか、画面上の任意の場所をクリックした後、スペースキーを押します。
2. shortcutkey.cmd ファイルに記載されたコマンドを入力します。
コマンドキー : メニューや機能を呼び出すためのキーです。
グループキー : コマンドグループを呼び出すためのキーです。
[例]
コマンドキーの例
- コマンドラインで「PM」を入力すると、「モデル」>「プロパティ」>「材料」メニューを呼び出すことができます。
グループキーの例
- 「P」は「プロパティ」のグループキーを表し、「M」は「マテリアル」のコマンドキーを表すため、「PM」と入力すると、
マテリアルプロパティダイアログボックスが呼び出されます。
- 「P」を入力すると、プログラムは[プロパティ]グループを呼び出し、選択可能なコマンドを示すポップアップリストが表示されます。
「M」を入力すると、プログラムは「材料特性」ダイアログボックスを呼び出します。これは、「PM」を入力した場合と同じです。
Shortcut Keys input using the Command Line.

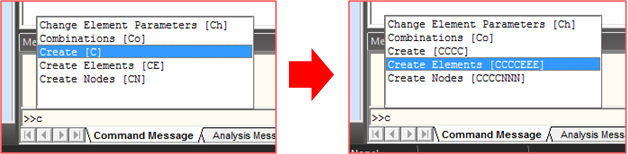

3. 任意の文字をコマンドラインに入力すると、サブコマンドを含むポップアップリストが表示されます。
ユーザーは文字通り入力することも、スペースキーまたは Enterキー を押す、もしくはマウスでクリックしてコマンドを選択することも可能です。
4. コマンドが実行されると、コマンドラインは自動的に初期状態に戻ります。
5. ユーザーは、バックスペースキーを押すことにより、入力されたコマンドを削除できます。
コマンドキーの作成方法
コマンドキーに関連するすべての情報は、C：\>プログラムファイル> MIDAS> midas iGen> Userフォルダーにあるshortcutkey.cmdファイルに保存されます。このファイルを変更することにより、ユーザーは頻繁に使用するコマンドのショートカットキーをカスタマイズ
できます。shortcutkey.cmdファイルの形式は次のとおりです。
キー：該当するダイアログボックスを呼び出すためのショートカットキー。
表示テキスト：対応するキーを入力したときに表示されるテキスト。
グループパス : 一致するコマンドがグループ内のキーである場合、ユーザーはそのグループのパスを入力します。
タイプ
C : コマンドキー
G : グループキー
L : 低学年のグループを選択します。 これは、アクティブなグループに含まれている他のグループを選択するためのショートカットキーです。
メニューパス : キータイプが「C」の場合、ユーザーは実行するメニューのパスを定義する必要があります。 パスはメインメニューに基づいて入力する必要があり、メニューに含まれる「…」は無視されます。
グループ名 : キータイプが「G」の場合、ユーザーはグループの名前を入力します。
グループパス :キータイプが「L」の場合、ユーザーは選択された下位グループを含む上位グループのパスを入力します。

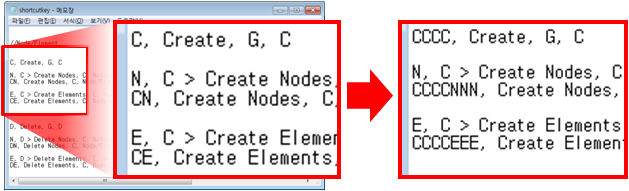

[コマンドキー 修正方法]

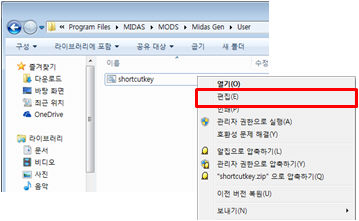

1. C:\> Program Files> MIDAS> midas Gen> フォルダーにある shortcutkey.cmd ファイルを マウスを右クリックして 編集を選択します。
2. メモ帳が起動したら、修正したい機能のコマンドキーを編集します。
3. 保存した後、GEN NX を起動して確認します。
[コマンドリスト(Contents of shortcutkey.cmd)]
//View
Rd, Redraw, C, View > Dynamic View > Redraw
In, Initial View, C, View > Dynamic View > Initial View
Dy, Dynamic View, G, Dy
Z, Dy > Zoom, C, View > Dynamic View > Dynamic > Zoom
DyZ, Zoom, C, View > Dynamic View > Dynamic > Zoom
P, Dy > Pan, C, View > Dynamic View > Dynamic > Pan
DyP, Pan, C, View > Dynamic View > Dynamic > Pan
R, Dy > Rotate, C, View > Dynamic View > Dynamic > Rotate
DyR, Rotate, C, View > Dynamic View > Dynamic > Rotate
Z, Zoom, G, Z
F, Z > Fit, C , View > Dynamic View > Zoom > Fit
ZF, Fit, C , View > Dynamic View > Zoom > Fit
W, Z > Window, C , View > Dynamic View > Zoom > Window
ZW, Window, C , View > Dynamic View > Zoom > Window
I, Z > In, C , View > Dynamic View > Zoom > In
ZI, In, C , View > Dynamic View > Zoom > In
O, Z > Out, C , View > Dynamic View > Zoom > Out
ZO, Out, C , View > Dynamic View > Zoom > Out
A, Z > Auto Fitting, C , View > Dynamic View > Zoom > Auto Fitting
ZA, Auto Fitting, C , View > Dynamic View > Zoom > Auto Fitting
Vi, View Point, G, Vi
I, Vi > Iso, C , View > Dynamic View > View Point > Iso
ViI, Iso, C , View > Dynamic View > View Point > Iso
T, Vi > Top(+Z), C , View > Dynamic View > View Point > Top (+Z)
ViT, Top(+Z), C , View > Dynamic View > View Point > Top (+Z)
L, Vi > Left(-X), C , View > Dynamic View > View Point > Left (-X)
ViL, Left(-X), C , View > Dynamic View > View Point > Left (-X)
R, Vi > Right(+X), C, View > Dynamic View > View Point > Right (+X)
ViR, Right(+X), C , View > Dynamic View > View Point > Right (+X)
F, Vi > Front(-Y), C, View > Dynamic View > View Point > Front (-Y)
ViF, Front(-Y), C , View > Dynamic View > View Point > Front (-Y)
A, Vi > Angle, C , View > Dynamic View > View Point > Angle
ViA, Angle, C , View > Dynamic View > View Point > Angle
Sh, Shrink, C, View > Render View > Shrink
Pe, Perspective, C, View > Render View > Perspective
H, Hidden, C, View > Render View > Hidden
S, Select, G, S
Id, S > Identity, C , View > Select > Select > Identity
SId, Identity, C , View > Select > Select > Identity
S, S > Single, C , View > Select > Select > Single
SS, Single, C , View > Select > Select > Single
W, S > Window, C , View > Select > Select > Window
SW, Window, C , View > Select > Select > Window
Po, S > Polygon, C , View > Select > Select > Polygon
SPo, Polygon, C , View > Select > Select > Polygon
In, S > Intersect Line, C , View > Select > Select > Intersect Line
SIn, Intersect Line, C , View > Select > Select > Intersect Line
P, S > Plane, C , View > Select > Select > Plane
SP, Plane, C , View > Select > Select > Plane
V, S > Volume, C , View > Select > Select > Volume
SV, Volume, C , View > Select > Select > Volume
All, S > Select All, C , View > Select > Select > Select All
SAll, Select All, C , View > Select > Select > Select All
Pr, S > Select Previous, C , View > Select > Select Previous > Select Previous
SPr, Select Previous, C , View > Select > Select Previous > Select Previous
U, Unselect, G, U
Id, U > Identity, C , View > Select > Unselect > Identity
Uid, Identity, C , View > Select > Unselect > Identity
W, U > Window, C , View > Select > Unselect > Window
UW, Window, C , View > Select > Unselect > Window
Po, U > Polygon, C , View > Select > Unselect > Polygon
Upo, Polygon, C , View > Select > Unselect > Polygon
I, U > Intersect Line, C, View > Select > Unselect > Intersect Line
UI, Intersect Line, C , View > Select > Unselect > Intersect Line
P, U > Plane, C , View > Select > Unselect > Plane
UP, Plane, C , View > Select > Unselect > Plane
V, U > Volume, C , View > Select > Unselect > Volume
UV, Volume, C , View > Select > Unselect > Volume
All, U > Unselect All, C, View > Select > Unselect > Unselect All
UAll, Unselect All, C , View > Select > Unselect > Unselect All
A, Activities, G, A
A, A > Active, C, View > Activities > Active
AA, Active, C, View > Activities > Active
I, A > Inactive, C, View > Activities > Inactive
AI, Inactive, C, View > Activities > Inactive
In, A > Inverse Active, C, View > Activities > Inverse Active
AIn, Inverse Active, C, View > Activities > Inverse Active
All, A > Active All, C, View > Activities > All > Active All
AAll, Active All, C, View > Activities > All > Active All
Id, A > Active Identity, C, View > Activities > All > Active Identity
AId, Active Identity, C, View > Activities > All > Active Identity
P, A > Active Previous, C, View > Activities > All > Active Previous
AP, Active Previous, C, View > Activities > All > Active Previous
G, Grid, G, G
V, G > View, G, GV
GV, View, L, G > View
P, G > GV > Point Grid, C, View > Grids/Snap > Grids > Point Grid
GP, Point Grid, C, View > Grids/Snap > Grids > Point Grid
L, G > GV > Line Grid, C, View > Grids/Snap > Grids > Line Grid
GL, Line Grid, C, View > Grids/Snap > Grids > Line Grid
Dg, Define Grid, G, Dg
P, Dg > Define Point Grid, C, Structure > UCS/Plan > Grids > Define Point Grid
DgP, Define Point Grid, C, Structure > UCS/Plan > Grids > Define Point Grid
L, Dg > Define Line Grid, C, Structure > UCS/Plan > Grids > Define Line Grid
DgL, Define Line Grid, C, Structure > UCS/Plan > Grids > Define Line Grid
Sn, Snap, G, Sn
P, Sn > Point, C , View > Grids/Snap > Snap > Point
SnP, Point, C , View > Grids/Snap > Snap > Point
L, Sn > Line, C , View > Grids/Snap > Snap > Line
SnL, Line, C , View > Grids/Snap > Snap > Line
N, Sn > Node, C , View > Grids/Snap > Snap > Node
SnN, Node, C , View > Grids/Snap > Snap > Node
E, Sn > Element, C , View > Grids/Snap > Snap > Element
SnE, Element, C , View > Grids/Snap > Snap > Element
All, Sn > All, C , View > Grids/Snap > Snap > All
SnAll, All, C , View > Grids/Snap > Snap > All
Free, Sn > Free, C , View > Grids/Snap > Snap > Free
SnFree, Free, C , View > Grids/Snap > Snap > Free
Dis, Display, G, Dis
D, Dis > Display, C, View > Display > Display > Display
DisD, Display, C, View > Display > Display > Display
O, Dis > Display Option, C, View > Display > Display > Display Option
DisO, Display Option, C, View > Display > Display > Display Option
//Structure
Str, Structure Type, C, Structure > Type > Structure Type
Bu, Building, G, Bu
C, Bu > Building Control Data, C, Structure > Building > Control Data > Control Data
BuC, Building Control Data, C, Structure > Building > Control Data > Control Data
S, Bu > Story, C, Structure > Building > Control Data > Story
BuS, Story, C, Structure > Building > Control Data > Story
G, Bu > Building Generation, C, Structure > Building > Control Data > Building Generation
BuG, Building Generation, C, Structure > Building > Control Data > Building Generation
Gr, Group, G, Gr
D, Gr > Define, G, GrD
GrD, Define Group, L, Gr > Create
S, Gr > GrD > Define Structure Group, C, Structure > Group > Structure
GrDS, Define Structure Group, C, Structure > Group > Structure
B, Gr > GrD > Define Boundary Group, C, Structure > Group > B/L/T > Define Boundary Group
GrDB, Define Boundary Group, C, Structure > Group > B/L/T > Define Boundary Group
L, Gr > GrD > Define Load Group, C, Structure > Group > B/L/T > Define Load Group
GrDL, Define Load Group, C, Structure > Group > B/L/T > Define Load Group
T, Gr > GrD > Define Tendon Group, C, Structure > Group > B/L/T > Define Tendon Group
GrDT, Define Tendon Group, C, Structure > Group > B/L/T > Define Tendon Group
G, Gr > Change, G, GrG
GrG, Change Group, L, Gr > Change
B, Gr > GrG > Change Boundary Group, C, Structure > Group > Change > Change Boundary Group
GrCB, Change Boundary Group, C, Structure > Group > Change > Change Boundary Group
L, Gr > GrG > Change Load Group, C, Structure > Group > Change > Change Load Group
GrCL, Change Load Group, C, Structure > Group > Change > Change Load Group
//Node/Element
C, Create, G, C
N, C > Create Nodes, C, Node/Element > Nodes > Create Nodes
CN, Create Nodes, C, Node/Element > Nodes > Create Nodes
E, C > Create Elements, C, Node/Element > Elements > Create Elements
CE, Create Elements, C, Node/Element > Elements > Create Elements
D, Delete, G, D
N, D > Delete Nodes, C, Node/Element > Nodes > Delete
DN, Delete Nodes, C, Node/Element > Nodes > Delete
E, D > Delete Elements, C, Node/Element > Elements > Delete
DE, Delete Elements, C, Node/Element > Elements > Delete
T, Translate, G, T
N, T > Translate Nodes, C, Node/Element > Nodes > Translate
TN, Translate Nodes, C, Node/Element > Nodes > Translate
E, T > Translate Elements, C, Node/Element > Elements > Translate
TE, Translate Elements, C, Node/Element > Elements > Translate
Ro, Rotate, G, Ro
N, Ro > Rotate Nodes, C, Node/Element > Nodes > Rotate
RoN, Rotate Nodes, C, Node/Element > Nodes > Rotate
E, Ro > Rotate Elements, C, Node/Element > Elements > Rotate
RoE, Rotate Elements, C, Node/Element > Elements > Rotate
Mi, Mirror, G, Mi
N, Mi > Mirror Nodes, C, Node/Element > Nodes > Mirror
MiN, Mirror Nodes, C, Node/Element > Nodes > Mirror
E, Mi > Mirror Elements, C, Node/Element > Elements > Mirror
MiE, Mirror Elements, C, Node/Element > Elements > Mirror
Di, Divide, G, Di
N, Di > Divide Nodes, C, Node/Element > Nodes > Divide
DiN, Divide Nodes, C, Node/Element > Nodes > Divide
E, Di > Divide Elements, C, Node/Element > Elements > Divide
DiE, Divide Elements, C, Node/Element > Elements > Divide
Me, Merge, G, Me
N, Me > Merge Node, C, Node/Element > Nodes > Merge
MeN, Merge Node, C, Node/Element > Nodes > Merge
E, Me > Merge Elements, C, Node/Element > Elements > Merge
MeE, Merge Elements, C, Node/Element > Elements > Merge
Ren, Renumbering, G, Ren
N, Ren > Renumbering, C, Node/Element > Nodes > Renumbering
RenN, Renumbering, C, Node/Element > Nodes > Renumbering
E, Ren > Renumbering, C, Node/Element > Elements > Renumbering
RenE, Renumbering, C, Node/Element > Elements > Renumbering
Pr, Project Nodes, C, Node/Element > Nodes > Project
I, Intersect Elements, C, Node/Element > Elements > Intersect
E, Extrude Elements, C, Node/Element > Elements > Extrude
Ch, Change Element Parameters, C, Node/Element > Elements > Change Parameters
//Properties
P, Properties, G, P
M, P > Material, C, Properties > Material > Material Properties
PM, Material, C, Properties > Material > Material Properties
S, P > Section, C, Properties > Section > Section Properties
PS, Section, C, Properties > Section > Section Properties
CR, P > Creep/Shrinkage, C, Properties > Time Dependent Material > Creep/Shrinkage
PCR, Creep/Shrinkage, C, Properties > Time Dependent Material > Creep/Shrinkage
SF, P > Section Stiffness Scale Factor, C, Properties > Section > Scale Factor > Section Stiffness Scale Factor
PSF, Section Stiffness Scale Factor, C, Properties > Section > Scale Factor > Section Stiffness Scale Factor
W, P > Wall Stiffness Scale Factor, C, Properties > Section > Scale Factor >Wall Stiffness Scale Factor
PW, Wall Stiffness Scale Factor, C, Properties > Section > Scale Factor > Wall Stiffness Scale Factor
T, P > Thickness, C, Properties > Section > Thickness
PT, Thickness, C, Properties > Section > Thickness
CS, P > Comp. Strength, C, Properties > Time Dependent Material > Comp. Strength
PCS, Comp. Strength, C, Properties > Time Dependent Material > Comp. Strength
//Boundary
B, Boundaries, G, B
S, B > Supports, C, Boundary > Supports > Define Supports
BS, Supports, C, Boundary > Supports > Define Supports
R, B > Beam End Release, C, Boundary > Release/Offset > Beam End Release
BR, Beam End Release, C, Boundary > Release/Offset > Beam End Release
O, B > Beam End Offsets, C, Boundary > Release/Offset > Beam End Offsets
BO, Beam End Offsets, C, Boundary > Release/Offset > Beam End Offsets
L, B > Rigid Link, C, Boundary > Link > Rigid Link
BL, Rigid Link, C, Boundary > Link > Rigid Link
EL, B > Elastic Link, C, Boundary > Link > Elastic Link
BEL, Elastic Link, C, Boundary > Link > Elastic Link
GL, B > General Link, C, Boundary > Link > General Link > General Link
BGL, General Link, C, Boundary > Link > General Link > General Link
GLP, B > General Link Properties, C, Boundary > Link > General Link > General Link Properties
BGLP, General Link Properties, C, Boundary > Link > General Link > General Link Properties
D, B > Diaphragm Disconnect, C, Boundary > Misc. > Diaphragm Disconnect
BD, Diaphragm Disconnect, C, Boundary > Misc. > Diaphragm Disconnect
P, B > Panel Zone Effects, C, Boundary > Misc. > Panel Zone Effects
BP, Panel Zone Effects, C, Boundary > Misc. > Panel Zone Effects
//Load
M, Masses, G, M
N, M > Nodal Masses, C, Load > Structure Loads / Masses > Loads to Masses > Nodal Masses
MN, Nodal Masses, C, Load > Structure Loads / Masses > Loads to Masses > Nodal Masses
L, M > Loads to Masses, C, Load > Structure Loads / Masses > Loads to Masses > Loads to Masses
ML, Loads to Masses, C, Load > Structure Loads / Masses > Loads to Masses > Loads to Masses
SL, Static Load, G, SL
NL, SL > Nodal Loads, C, Load > Structure Loads / Masses > Nodal Loads
SLNL, Nodal Loads, C, Load > Structure Loads / Masses > Nodal Loads
EB, SL > Element Beam Loads, C, Load > Beam Load > Element
SLEB, Element Beam Loads, C, Load > Beam Load > Element
LB, SL > Line Beam Loads, C, Load > Beam Load > Line
SLLB, Line Beam Loads, C, Load > Beam Load > Line
PL, SL > Pressure Loads, C, Load > Pressure Load > Pressure Loads
SLPL, Pressure Loads, C, Load > Pressure Load > Pressure Loads
TL, Temperature Load, G, TL
ST, TL > System Temp., C, Load > Temperature Loads > System Temp.
TLST, System Temp., C, Load > Temperature Loads > System Temp.
NT, TL > Nodal Temp., C, Load > Temperature Loads > Nodal Temp.
TLNT, Nodal Temp., C, Load > Temperature Loads > Nodal Temp.
ET, TL > Element Temp., C, Load > Temperature Loads > Element Temp.
TLET, Element Temp., C, Load > Temperature Loads > Element Temp.
TG, TL > Temp. Gradient, C, Load > Temperature Loads > Temp. Gradient
TLTG, Temp. Gradient, C, Load > Temperature Loads > Temp. Gradient
BT, TL > Beam Section Temp., C, Load > Temperature Loads > Beam Section Temp.
TLBT, Beam Section Temp., C, Load > Temperature Loads > Beam Section Temp.
PL, Prestress Load, G, PL
BL, PL > Prestress Beam Loads, C, Load > Prestress Loads > Prestress Beam Loads
PT, PL > Pretension Loads, C, Load > Prestress Loads > Pretension Loads
EPT, PL > External Type Loadcase, C, Load > Prestress Loads > External Type Loadcase
TPT, PL > Tendon Property, C, Load > Prestress Loads > Tendon Property
TPR, PL > Tendon Profile, C, Load > Prestress Loads > Tendon Profile
TPL, PL > Tendon Prestress, C, Load > Prestress Loads > Tendon Prestress
MVL, Moving Load, G, MVL
Co, MVL > Code , C, Load > Moving Load Code > Moving Load Code
MVC, MVL Code , C, Load > Moving Load Code > Moving Load Code
TLL, MVL > Line Lanes , C, Load > Moving Load Analysis Data > Traffic Line Lanes
MVTLL, Traffic Line Lanes , C, Load > Moving Load Analysis Data > Traffic Line Lanes
TSL, MVL > Surface Lanes , C, Load > Moving Load Analysis Data > Traffic Surface Lanes
MVTSL, Traffic Surface Lanes, C, Load > Moving Load Analysis Data > Traffic Surface Lanes
Ve, MVL > Vehicles , C, Load > Moving Load Analysis Data > Vehicles
MVVe, Vehicles , C, Load > Moving Load Analysis Data > Vehicles
VeC, MVL > Vehicle Classes , C, Load > Moving Load Analysis Data > Vehicle Classes
MVVeC, Vehicle Classes , C, Load > Moving Load Analysis Data > Vehicle Classes
CA, MVL > MVL Case , C, Load > Moving Load Analysis Data > Moving Load Cases
MVCA, MVL Case , C, Load > Moving Load Analysis Data > Moving Load Cases
CR, MVL > Concurrent Reaction , C, Load > Moving Load Analysis Data > Concurrent Reaction Group
MVCR, Concurrent Reaction , C, Load > Moving Load Analysis Data > Concurrent Reaction Group
LS, MVL > Lane Support , C, Load > Moving Load Analysis Data > Lane Support-Nega. Moment
MVLS, Lane Support , C, Load > Moving Load Analysis Data > Lane Support-Nega. Moment
HH, Heat of Hydration, G, HH
AT , HH > Ambient Temp , C, Load > Heat of Hydration Analysis Data > Ambient Temperature Functions
CC , HH > Convection Coeff , C, Load > Heat of Hydration Analysis Data > Convection Coefficient Functions
EC , HH > Convection Boundary,C, Load > Heat of Hydration Analysis Data > Convection Boundary
PT , HH > Prescribed Temp. , C, Load > Heat of Hydration Analysis Data > Prescribed Temp.
HS , HH > Heat Source , C, Load > Heat of Hydration Analysis Data > Heat Source Functions
AHS, HH > Assign HEat source, C, Load > Heat of Hydration Analysis Data > Assign Heat source
PC , HH > Pipe Cooling , C, Load > Heat of Hydration Analysis Data > Pipe Cooling
CSH, HH > CS for Hydration , C, Load > Heat of Hydration Analysis Data > Define CS for Hydration
//Analysis
Ana, Analysis, G, Ana
M , Ana > Main Control , C, Analysis > Main Control > Main Control Data
AM , Main Control , C, Analysis > Main Control > Main Control Data
PD , Ana > P-Delta , C, Analysis > Analysis Control > P-Delta
APD, P-Delta , C, Analysis > Analysis Control > P-Delta
Bu , Ana > Buckling , C, Analysis > Analysis Control > Buckling
ABu, Buckling , C, Analysis > Analysis Control > Buckling
EG , Ana > Eigenvalue , C, Analysis > Analysis Control > Eigenvalue
AEG, Eigenvalue , C, Analysis > Analysis Control > Eigenvalue
RS , Ana > Response Spectrum , C, Analysis > Analysis Control > Response Spectrum
ARS, Response Spectrum , C, Analysis > Analysis Control > Response Spectrum
HH , Ana > Heat of Hydration , C, Analysis > Analysis Control > Heat of Hydration
AHH, Heat of Hydration , C, Analysis > Analysis Control > Heat of Hydration
MV , Ana > Moving Load , C, Analysis > Analysis Control > Moving Load
AMV, Moving Load , C, Analysis > Analysis Control > Moving Load
NL , Ana > Nonlinear , C, Analysis > Analysis Control > Nonlinear
ANL, Nonlinear , C, Analysis > Analysis Control > Nonlinear
CS , Ana > Construction Stage, C, Analysis > Analysis Control > Construction Stage
ACS, Construction Stage , C, Analysis > Analysis Control > Construction Stage
SU , Ana > Suspension Bridge , C, Analysis > Analysis Control > Suspension Bridge
ASU, Suspension Bridge , C, Analysis > Analysis Control > Suspension Bridge
BC , Ana > Boundary Change , C, Analysis > Analysis Control > Boundary Change Assignment
ABC, Boundary Change , C, Analysis > Analysis Control > Boundary Change Assignment
//Results
Co, Combinations, C, Results > Combination > Load Combination
Rea, Reactions, G, Rea
F, Rea > Reaction Forces/Moments, C , Results > Results > Reactions > Reaction Forces/Moments
ReaF, Reaction Forces/Moments, C , Results > Results > Reactions > Reaction Forces/Moments
S, Rea > Search Reaction Forces/Moments, C , Results > Results > Reactions > Search Reaction Forces/Moments
ReaS, Search Reaction Forces/Moments, C , Results > Results > Reactions > Search Reaction Forces/Moments
Def, Deformations, G, Def
S, Def > Deformed Shape, C , Results > Results > Deformations > Deformed Shape
DeS, Deformed Shape, C , Results > Results > Deformations > Deformed Shape
C, Def > Displacement Contour, C, Results > Results > Deformations > Displacement Contour
DeC, Displacement Contour, C , Results > Results > Deformations > Displacement Contour
D, Def > Search Displacements, C, Results > Results > Deformations > Search Displacements
DeD, Search Displacements, C , Results > Results > Deformations > Search Displacements
F, Forces, G, F
T, F > Truss, C, Results > Results > Forces >Truss Forces
FT, Truss, C, Results > Results > Forces >Truss Forces
B, F > Beam Forces/Moments, C, Results > Results > Forces >Beam Forces/Moments
FB, Beam Forces/Moments, C, Results > Results > Forces >Beam Forces/Moments
BD, F > Beam Diagrams, C, Results > Results > Forces >Beam Diagrams
FBD, Beam Diagrams, C, Results > Results > Forces >Beam Diagrams
P, F > Plate Forces/Moments, C, Results > Results > Forces >Plate Forces/Moments
FP, Plate Forces/Moments, C, Results > Results > Forces >Plate Forces/Moments
PD, F > Plate Cutting Line Diagram, C, Results > Results > Forces >Plate Cutting Line Diagram
FPD, Plate Cutting Line Diagram, C, Results > Results > Forces >Plate Cutting Line Diagram
W, F > Wall Forces/Moments, C, Results > Results > Forces >Wall Forces/Moments
FW, Wall Forces/Moments, C, Results > Results > Forces >Wall Forces/Moments
WD, F > Wall Diagrams, C, Results > Results > Forces >Wall Diagrams
FWD, Wall Diagrams, C, Results > Results > Forces >Wall Diagrams
M, F > Member Diagrams, C, Results > Results > Forces >Member Diagrams
FM, Member Diagrams, C, Results > Results > Forces >Member Diagrams
St, Stresses, G, St
T, St > Truss Stresses, C, Results > Results > Stresses >Truss Stresses
StT, Truss Stresses, C, Results > Results > Stresses >Truss Stresses
B, St > Beam Stresses, C, Results > Results > Stresses >Beam Stresses
StB, Beam Stresses, C, Results > Results > Stresses >Beam Stresses
D, St > Beam Stresses Diagram, C, Results > Results > Stresses >Beam Stresses Diagram
StD, Beam Stresses Diagram, C, Results > Results > Stresses >Beam Stresses Diagram
P, St > Plane-Stress/Plate Stresses, C, Results > Results > Stresses >Plane-Stress/Plate Stresses
StP, Plane-Stress/Plate Stresses, C, Results > Results > Stresses >Plane-Stress/Plate Stresses
PS, St > Plane Strain Stresses, C, Results > Results > Stresses >Plane Strain Stresses
StPS, Plane Strain Stresses, C, Results > Results > Stresses >Plane Strain Stresses
A, St > Axisymmetric Stresses, C, Results > Results > Stresses >Axisymmetric Stresses
StA, Axisymmetric Stresses, C, Results > Results > Stresses >Axisymmetric Stresses
S, St > Solid Stresses, C, Results > Results > Stresses >Solid Stresses
StS, Solid Stresses, C, Results > Results > Stresses >Solid Stresses
LDFS, Local Direction Force Sum, C, Results > Detail > Local Direction
V, Vibration Mode Shapes, C, Results > Mode shape > Mode shapes > Vibration Mode Shapes
BK, Buckling Mode Shape, C, Results > Mode shape > Mode shapes > Buckling Mode Shapes
SG, Stage/Step history Graph, C, Results > Time History > Stage/Step Graph
UKL, Unknown Load Factor, C, Results > Misc. > Unknown Load Factor
MVT, Moving Load Tracer, G, MVT
RE , MVT > Reaction , C, Results > Moving Load > Moving Tracer > Reactions
Dis , MVT > Displacement, C, Results > Moving Load > Moving Tracer > Displacements
T , MVT > Truss Forces, C, Results > Moving Load > Moving Tracer > Truss Forces
B , MVT > Beam Force , C, Results > Moving Load > Moving Tracer > Beam Forces/Moments
MVTB, MV Tracer of Beam , C, Results > Moving Load > Moving Tracer > Beam Forces/Moments
P , MVT > Plate , C, Results > Moving Load > Moving Tracer > Plate Forces/Moment
BS , MVT > Beam Stress , C, Results > Moving Load > Moving Tracer > Beam Stresses
Sto, Story Shear Force Ratio, C, Results > Misc. > Story Shear Force Ratio
O, Text Output, C, Results > Text > Text Output
Mo, Model Table, G, Mo
N, Mo > Nodes Table, C, Node/Element > Nodes > Nodes Table
MoN, Nodes Table, C, Node/Element > Nodes > Nodes Table
E, Mo > Elements Table, C, Node/Element > Elements > Elements Table
MoE, Elements Table, C, Node/Element > Elements > Elements Table
M, Mo > Material Table, C, Properties > Tables > Property Tables > Material
MoM, Material Table, C, Properties > Tables > Property Tables > Material
Se, Mo > Section Table, C, Properties > Tables > Property Tables > Section
MoSe, Section Table, C, Properties > Tables > Property Tables > Section
T, Mo > Thickness Table, C, Properties > Tables > Property Tables > Thickness
MoT, Thickness Table, C, Properties > Tables > Property Tables > Thickness
Su, Mo > Supports Table, C, Boundary > Tables > Boundary Tables > Supports
MoSu, Supports Table, C, Boundary > Tables > Boundary Tables > Supports
Rt, Result Tables, G, Rt
R, Rt > Reaction, C, Results > Tables > Results Tables > Reaction
RtR, Reaction, C, Results > Tables > Results Tables > Reaction
D, Rt > Displacements, C, Results > Tables > Results Tables > Displacements
RtD, Displacements, C, Results > Tables > Results Tables > Displacements
T, Rt > Truss, G, RtT
RtT, Truss, L, Rt > Truss
Fo, Rt > RtT > Force & Stress, C, Results > Tables > Results Tables > Truss > Force & Stress
RtTFo, Force & Stress, C, Results > Tables > Results Tables > Truss > Force & Stress
F, Rt > RtT > Force, C, Results > Tables > Results Tables > Truss > Force
RtTF, Force, C, Results > Tables > Results Tables > Truss > Force
S, Rt > RtT > Stress, C, Results > Tables > Results Tables > Truss > Stress
RtTS, Stress, C, Results > Tables > Results Tables > Truss > Stress
B, Rt > Beam, G, RtB
RtB, Beam, L, Rt > Beam
Fo, Rt > RtB > Force & Stress, C, Results > Tables > Results Tables > Beam > Force & Stress
RtBFo, Force & Stress, C, Results > Tables > Results Tables > Beam > Force & Stress
F, Rt > RtB > Force, C, Results > Tables > Results Tables > Beam > Force
RtBF, Force, C, Results > Tables > Results Tables > Beam > Force
S, Rt > RtB > Stress, C, Results > Tables > Results Tables > Beam > Stress
RtBS, Stress, C, Results > Tables > Results Tables > Beam > Stress
P, Rt > Plate, G, RtP
RtP, Plate, L, Rt > Plate
F, Rt > RtP > Force & Stress, C, Results > Tables > Results Tables > Plate > Force & Stress
RtPF, Force & Stress, C, Results > Tables > Results Tables > Plate > Force & Stress
FL, Rt > RtP > Force(Local), C, Results > Tables > Results Tables > Plate > Force (Local)
RtPFL, Force(Local), C, Results > Tables > Results Tables > Plate > Force (Local)
FG, Rt > RtP > Force(Global), C, Results > Tables > Results Tables > Plate > Force (Global)
RtPFG, Force(Global), C, Results > Tables > Results Tables > Plate > Force (Global)
FU, Rt > RtP > Force(Unit Length), C, Results > Tables > Results Tables > Plate > Force (Unit Length)
RtPFU, Force(Unit Length), C, Results > Tables > Results Tables > Plate > Force (Unit Length)
SL, Rt > RtP > Stress(Local), C, Results > Tables > Results Tables > Plate > Stress (Local)
RtPSL, Stress(Local), C, Results > Tables > Results Tables > Plate > Stress (Local)
SG, Rt > RtP > Stress(Global), C , Results > Tables > Results Tables > Plate > Stress (Global)
RtPSG, Stress(Global), C , Results > Tables > Results Tables > Plate > Stress (Global)
W, Rt > Wall Force/Moment, C, Results > Tables > Results Tables > Wall > &Force/Moment
RtW, Wall Force/Moment, C, Results > Tables > Results Tables > Wall > &Force/Moment
V, Rt > Vibration Mode Shape, C, Results > Tables > Results Tables > Vibration Mode Shape
RtV, Vibration Mode Shape, C, Results > Tables > Results Tables > Vibration Mode Shape
S, Rt > Story, G, RtS
RtS, Story, L, Rt > Story
Dr, Rt > RtS > Story Drift, C, Results > Tables > Results Tables > Story > Story &Drift
RtSDr, Story Drift, C, Results > Tables > Results Tables > Story > Story &Drift
Di, Rt > RtS > Story Displacement, C, Results > Tables > Results Tables > Story > Story D&isplacement
RtSDi, Story Displacement, C, Results > Tables > Results Tables > Story > Story D&isplacement
S, Rt > RtS > Story Shear(Response Spectrum Analysis), C, Results > Tables > Results Tables > Story > Story &Shear (Response Spectrum Analysis)
RtSS, Story Shear(Response Spectrum Analysis), C, Results > Tables > Results Tables > Story > Story &Shear (Response Spectrum Analysis)
M, Rt > RtS > Story Mode Shape, C, Results > Tables > Results Tables > Story > Story &Mode Shape
RtSM, Story Mode Shape, C, Results > Tables > Results Tables > Story > Story &Mode Shape
E, Rt > RtS > Story Eccentricity, C, Results > Tables > Results Tables > Story > Story &Eccentricity
RtSE, Story Eccentricity, C, Results > Tables > Results Tables > Story > Story &Eccentricity
F, Rt > RtS > Story Shear Force Ratio, C, Results > Tables > Results Tables > Story > Story Shear &Force Ratio
RtSF, Story Shear Force Ratio, C, Results > Tables > Results Tables > Story > Story Shear &Force Ratio
T, Rt > RtS > Torsional Amplification Factor, C, Results > Tables > Results Tables > Story > &Torsional Amplification Factor
RtST, Torsional Amplification Factor, C, Results > Tables > Results Tables > Story > &Torsional Amplification Factor
O, Rt > RtS > Overturning Moment, C, Results > Tables > Results Tables > Story > &Overturning Moment
RtSO, Overturning Moment, C, Results > Tables > Results Tables > Story > &Overturning Moment
A, Rt > RtS > Story Axial Force Sum, C, Results > Tables > Results Tables > Story > Story &Axial Force Sum
RtSA, Story Axial Force Sum, C, Results > Tables > Results Tables > Story > Story &Axial Force Sum
C, Rt > RtS > Stability Coefficient, C, Results > Tables > Results Tables > Story > Stability &Coefficient
RtSC, Stability Coefficient, C, Results > Tables > Results Tables > Story > Stability &Coefficient
I, Rt > RtS > Irregularity Check, G, RtSI
RtSI, Irregularity Check, L, Rt > ReS > Irregularity Check
T, Rt > RtS > RtSI > Torsional Irregularity Check, C, Results > Tables > Results Tables > Story > &Torsional Irregularity Check
RtSIT, Torsional Irregularity Check, C, Results > Tables > Results Tables > Story > &Torsional Irregularity Check
S, Rt > RtS > RtSI > Stiffness Irregularity Check, C, Results > Tables > Results Tables > Story > &Stiffness Irregularity Check(Soft Story)
RtSIS, Stiffness Irregularity Check, C, Results > Tables > Results Tables > Story > &Stiffness Irregularity Check(Soft Story)
W, Rt > RtS > RtSI > Weight Irregularity Check, C, Results > Tables > Results Tables > Story > &Weight Irregularity Check
RtSIW, Weight Irregularity Check, C, Results > Tables > Results Tables > Story > &Weight Irregularity Check
C, Rt > RtS > RtSI > Capacity Irregularity Check, C, Results > Tables > Results Tables > Story > &Capacity Irregularity Check (Weak story)
RtSIC, Capacity Irregularity Check, C, Results > Tables > Results Tables > Story > &Capacity Irregularity Check (Weak Story)
