Function
- Check the cable element forces in a spreadsheet format table.
- Table Tool in midas Civil is powerful and contains a large variety of built-in functions.
Call
From the main menu, select [Results] tab > [Type : Analysis result] > [Table] group > [Result Tables] > [Cable] > [Force]
Input
Upon executing Cable > Force Table, Records Activation Dialog prompts. Click OK after selecting the output entities such as nodes or elements, loading conditions, construction stages, etc. Press Cancel to display all information about the object, and it may take a considerable time to display.
Refer to Results Table of "Usage of Table Tool" for the usage of Records Activation Dialog.
Refer to Usage of Table Tool and check the following data:

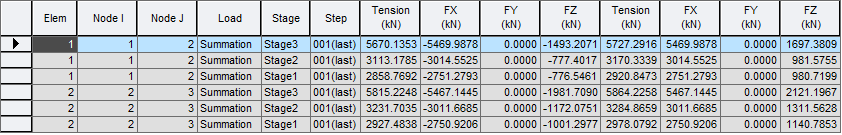

Cable Force
Elem : ID number of elements
Load : Load condition
Step : Step
Node I : Node ID number of Section I
Node J : Node ID number of Section J
Tension : Cable tension at Section i
FX : Cable tension in GCS X-direction at Section i
FY : Cable tension in GCS Y-direction at Section i
FZ : Cable tension in GCS Z-direction at Section i
Tension : Cable tension at Section j
FX : Cable tension in GCS X-direction at Section j
FY : Cable tension in GCS Y-direction at Section j
FZ : Cable tension in GCS Z-direction at Section j
