Analysis Result Tables Created Edited

Cable Configuration Result Table


  • Check the cable element configuration in a table format.



From the main menu, select [Results] tab > [Type : Analysis result] > [Table] group > [Result Tables] > [Cable] > [Configuration]



Upon executing Cable > Configuarion, Records Activation Dialog prompts. Click OK after selecting the output entities such as nodes or elements, loading conditions, construction stages, etc. Click Cancel to produce the results in a table for the selected output. It may take considerable time to display.

NOTE.png Refer to Results Table of "Usage of Table Tool" for the usage of Records Activation Dialog.

Refer to Usage of Table Tool and check the following data:

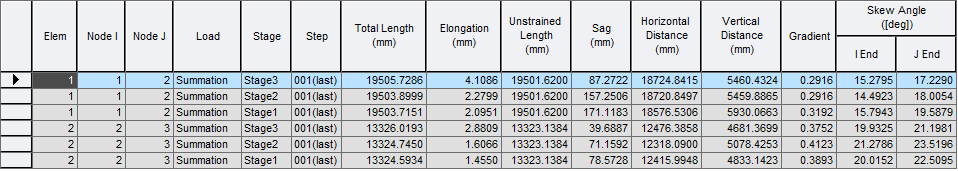

Results-tables-cable-cable configuration.png

Elem : ID number for elements

Load : Load case

Step : Sub-stage

Node I : Node ID number for I-end

Node J : Node ID number for J-end

Total Length : Cable Length after deformation (Unstrained Length + Elongation)

Elongation : Deformation

Unstrained Length : Length without being subjected to stress

Sag : Cable Sag

Horizontal Distance : Horizontal Distance between I-end and J-end

Vertical Distance : Vertical Distance between I-end and J-end

Gradient : Vertical Distance / Horizontal Distance

Skew Angle

I End : Angle between the horizontal line and tangential line at I-end

J End : Angle between the horizontal line and tangential line at J-end
