Question
How to save the results of every increment of a non-linear analysis?
Answer

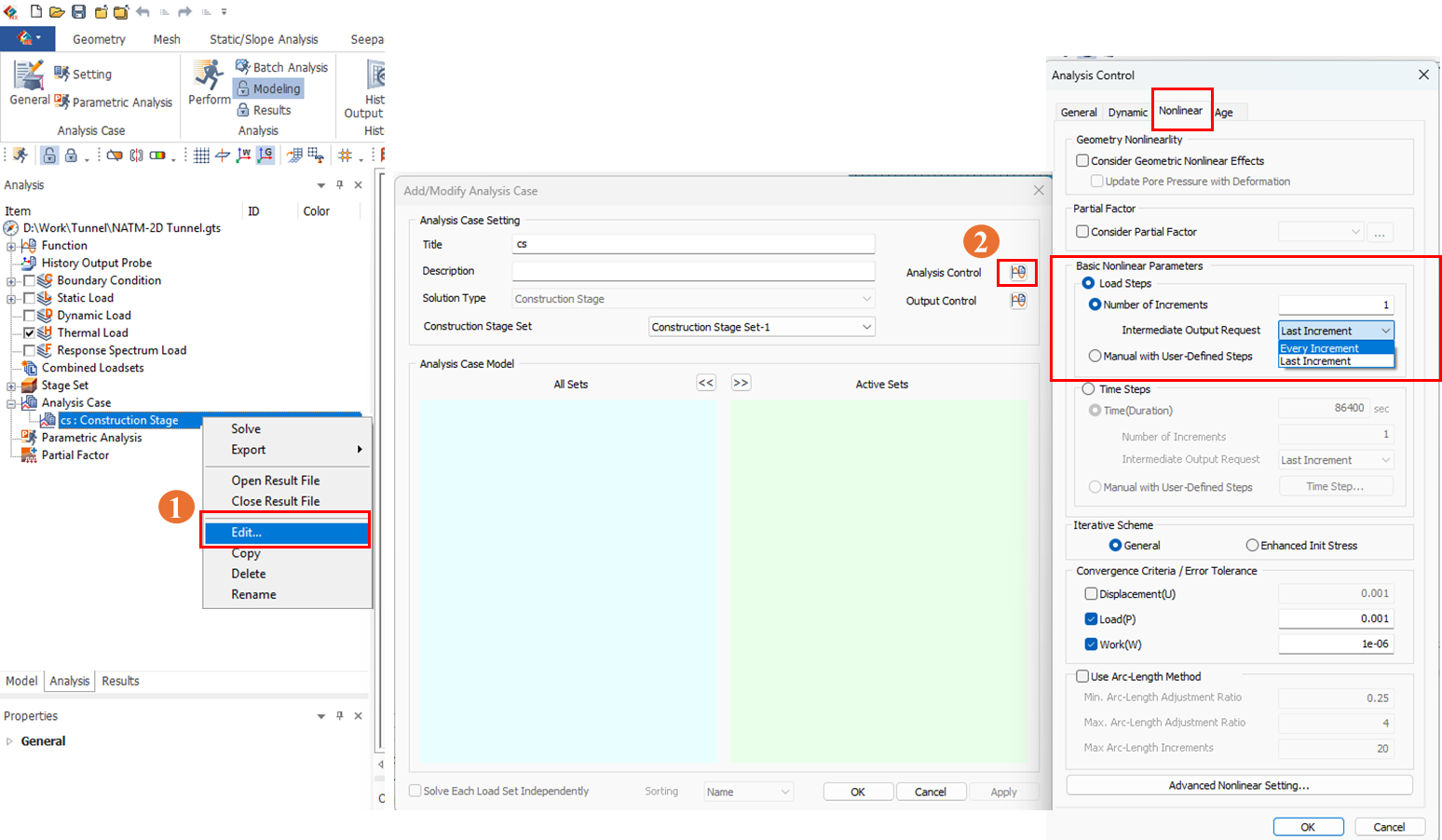

In GTS NX, the results can be saved for every loading increment or the last increment, depending on the engineer's requirement. To save results for each increment, the Intermediate output request setting in Analysis control needs to be changed to Every Increment. Go to Analysis tab in the works Tree. Right click on the analysis case created and click on Edit. In the analysis case click on Analysis Control and chose Nonlinear tab as shown in the following Figure..
