[GTS NX] How to Obtain Volume Data?

Question

How to Obtain Volume Data?

Answer

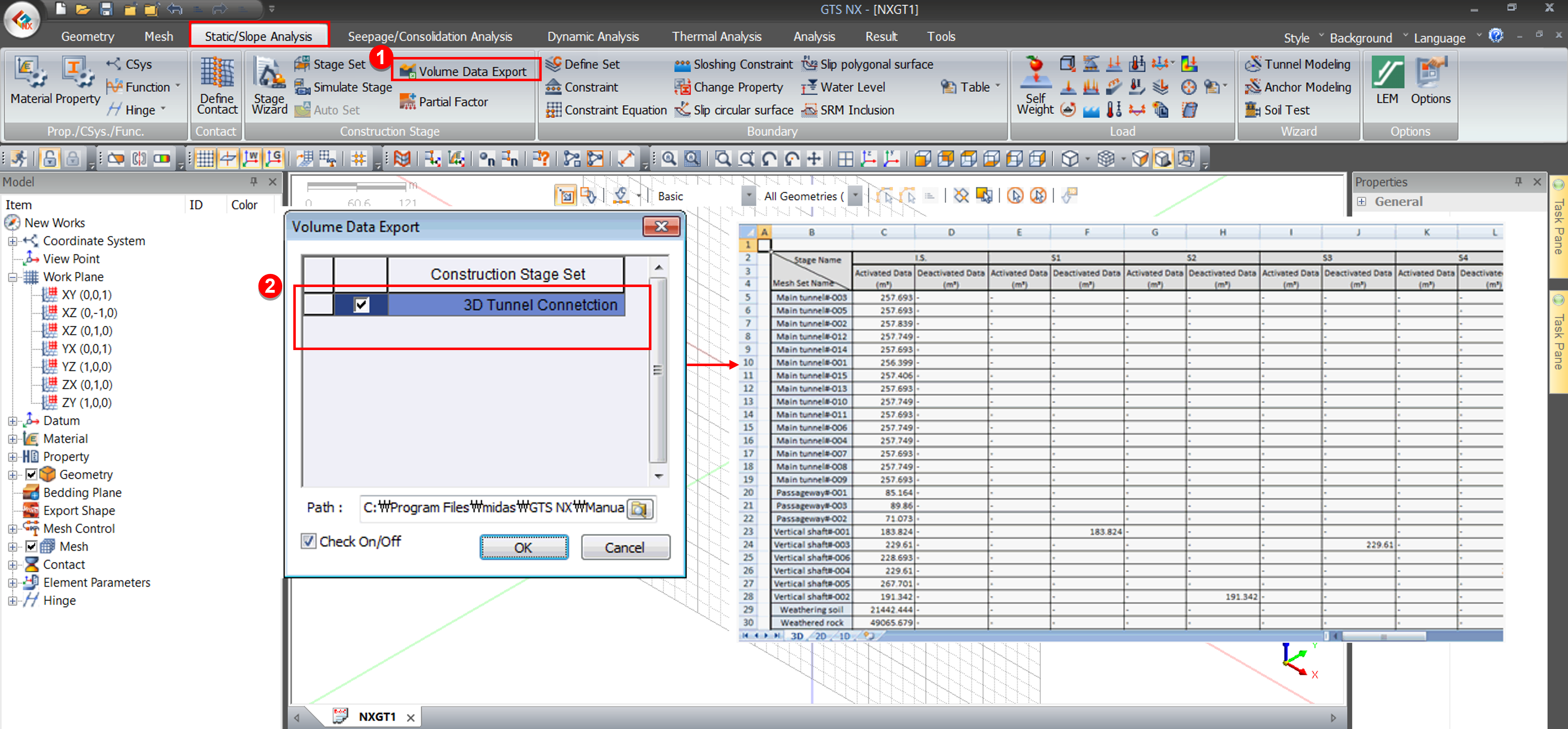

The volume data for 1D, 2D, and 3D elements defined within the construction stages can be exported to an Excel file. This export includes the length (for 1D), area (for 2D), or volume (for 3D) of the elements that are activated or deactivated in each stage.
