Question
How to remesh 2D elements?
Answer
After completing the meshing, if the mesh size needs to be changed, follow these steps:

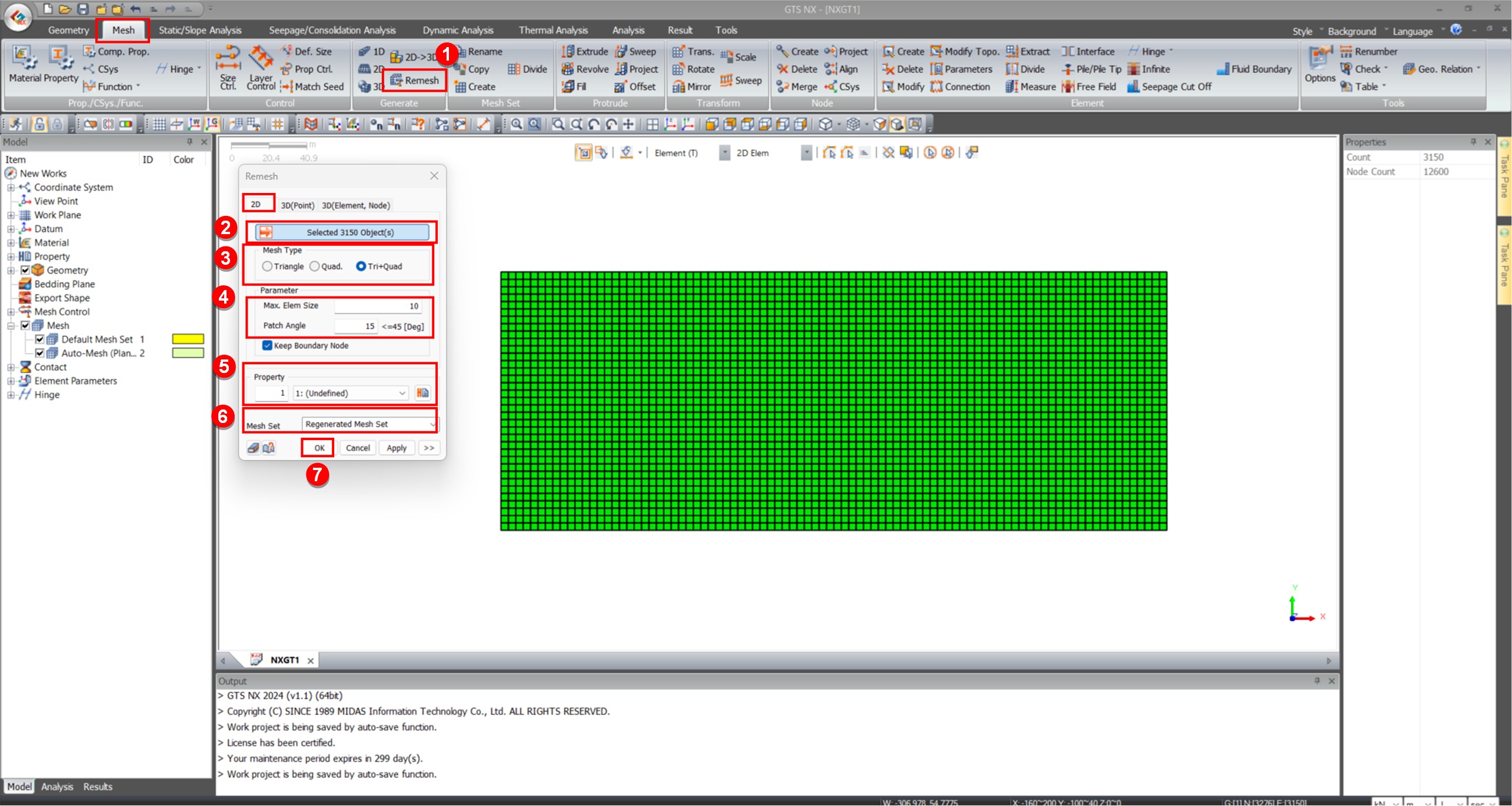

Step 1: Go to Mesh > Generate > Remesh.
Step 2: Select the mesh set which needs to be remeshed.
Step 3: Select mesh type as Tri + Quad.
Step 4: Enter the mesh size as 10m.
Step 5: Select the property of the mesh.
Step 6: Select the mesh set name.
Step 7: Click OK.

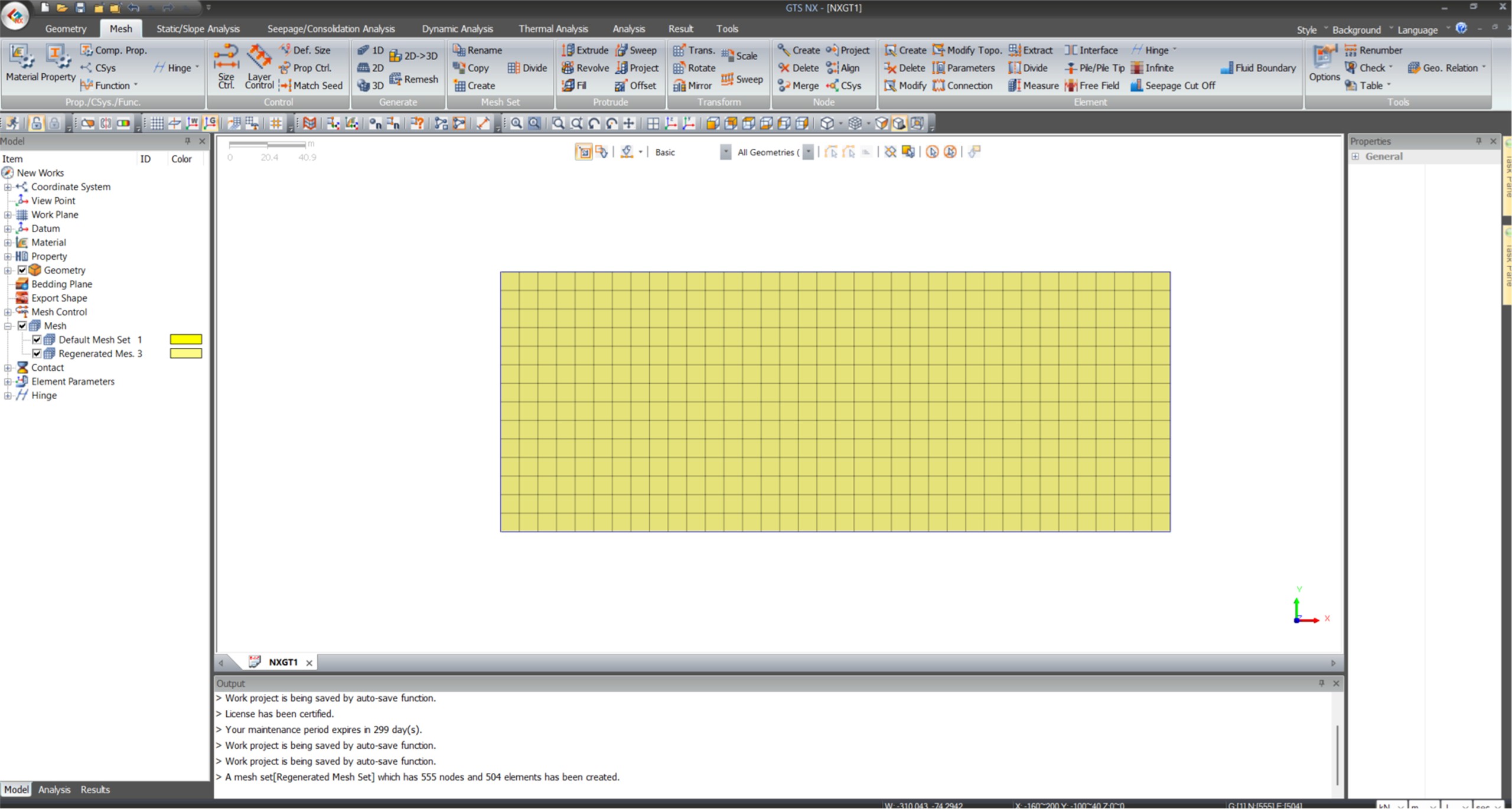

The remeshed model is shown in the figure below.
