[GTS NX] How to define grouted and un-grouted anchor lengths using Anchor Wizard in GTS NX?

Question

How to define grouted and un-grouted anchor lengths using Anchor Wizard in GTS NX?

Answer

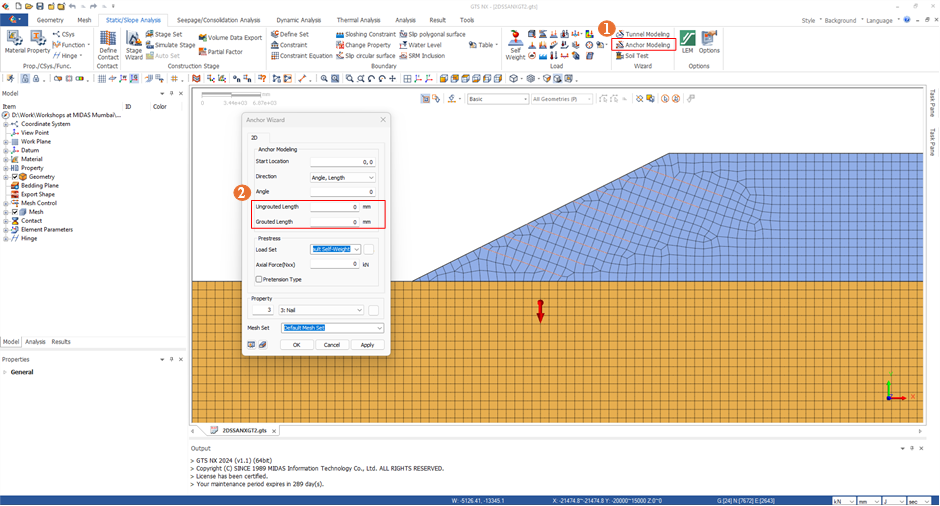

Anchor Modeling Wizard helps in modeling grouted and un-grouted lengths in GTS NX. It also allows us to apply prestress in the un-grouted part as well. To define the grouted and un-grouted lengths, Goto > Static/slope analysis > Wizard > Anchor Modelling as shown in the Figure below.
