[GTS NX] Procedure to import a CAD file

Question

Procedure to import a CAD file

Answer

The GTS NX supports the import of drawing files with extensions like DXF, DWG, Parasolid, ACIS, CATIA, etc. The process is as follows: (CAD file is considered for example)

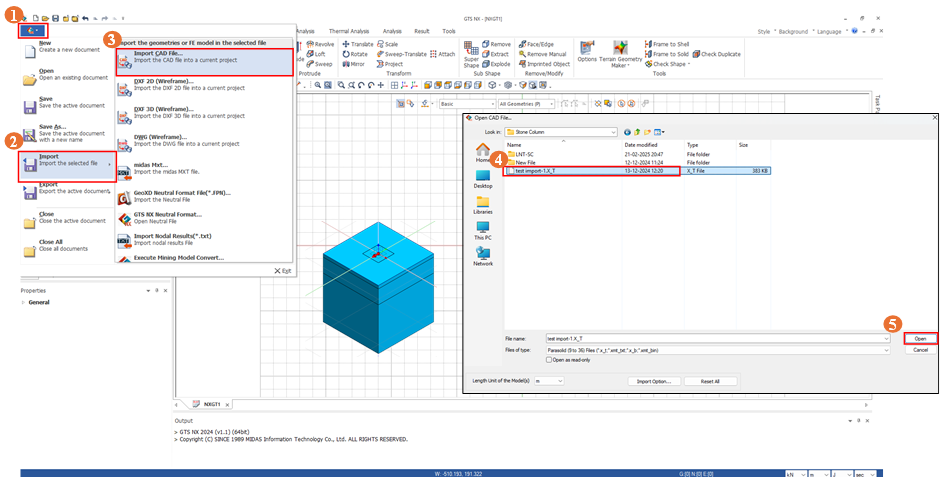

Step 1: Go to File menu

Step 2: Click on Import

Step 3: Choose Import Cad File…

Step 4: Select the required file from the drive

Step 5: Click Open
