[GTS NX] How to change assigned material property?

Question

How to change assigned material property?

Answer

To modify the assigned material property, follow these steps:

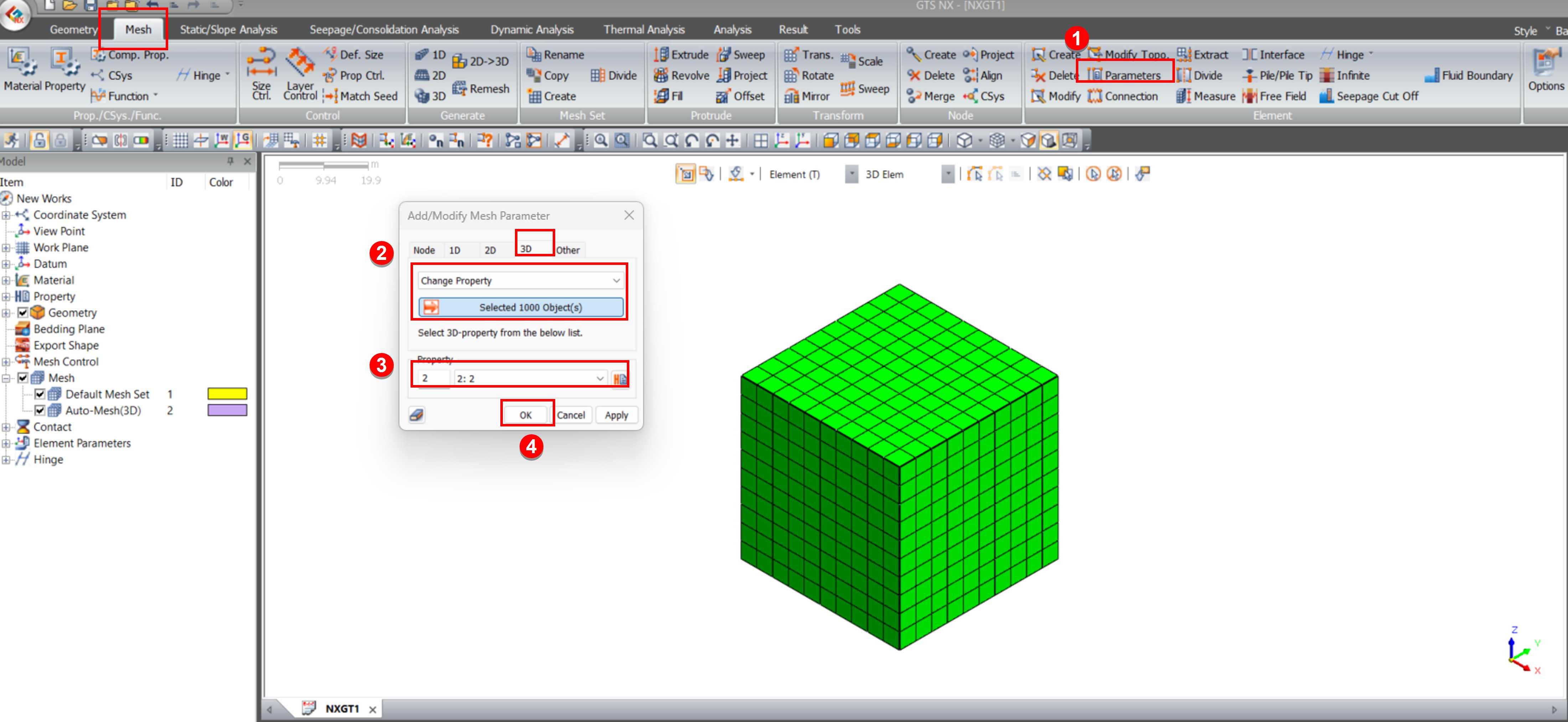

Step 1: Navigate to Mesh > Element > Parameters.

Step 2: Choose 3D Mesh and select Change Property.

Step 3: Select the desired material property from the drop down.

Step 4: Click on OK.
