[GTS NX] How to Merge Nodes?

Question

How to Merge Nodes?

Answer

When two or more nodes need to be merged, the Merge option can be used.

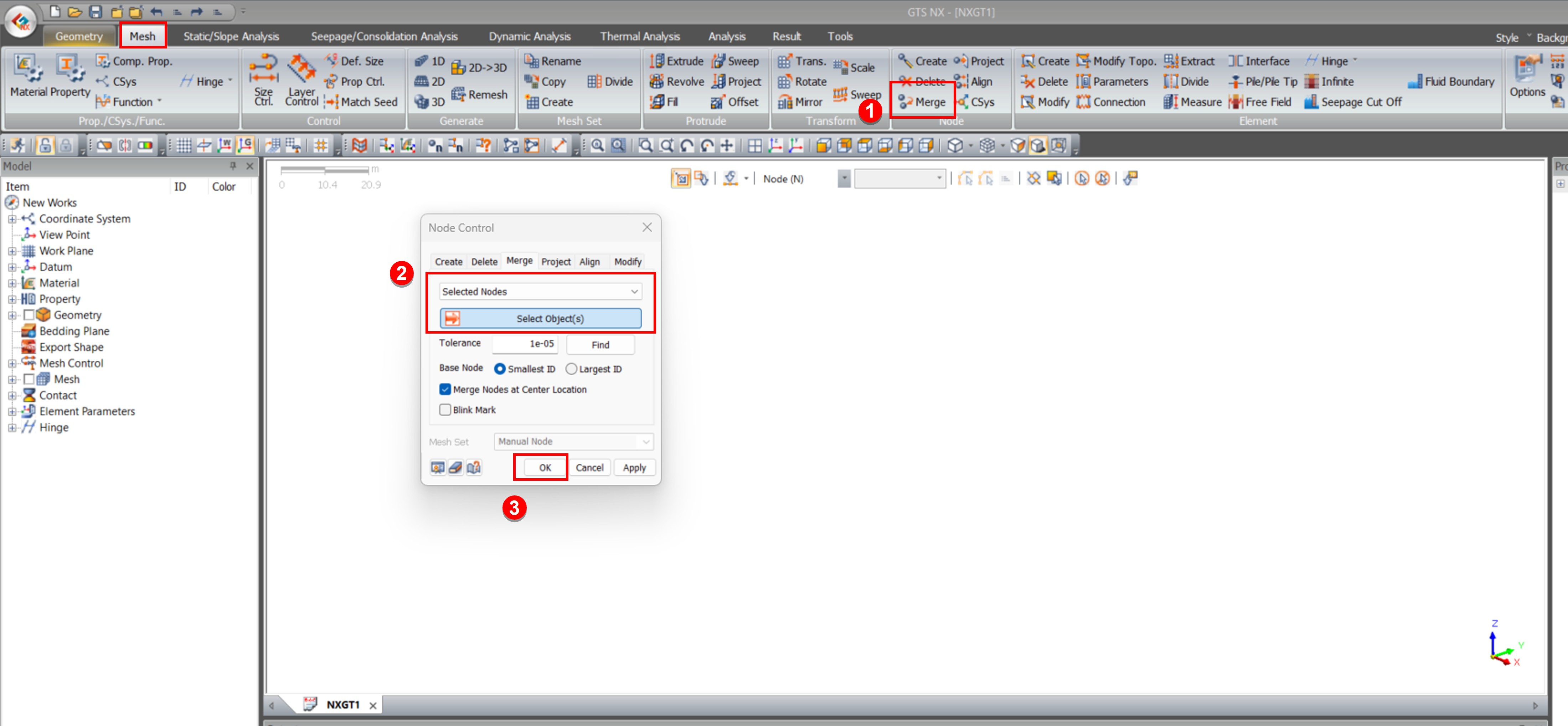

Steps to Merge Nodes:

Step 1: Navigate to Mesh > Node > Merge.

Step 2: Select the nodes which needs to be merge.

Step 3: Click on OK.
